SRS2000-SC28HH4X8C16T
SRS2000-SC28HH4X8C16T

SRS2000-SC28HH4X8C16T

Нет отзывов
Код товара: MRD SRS2000-SC28HH4X8C16T
68 377 ₽
В наличии много 1000 шт

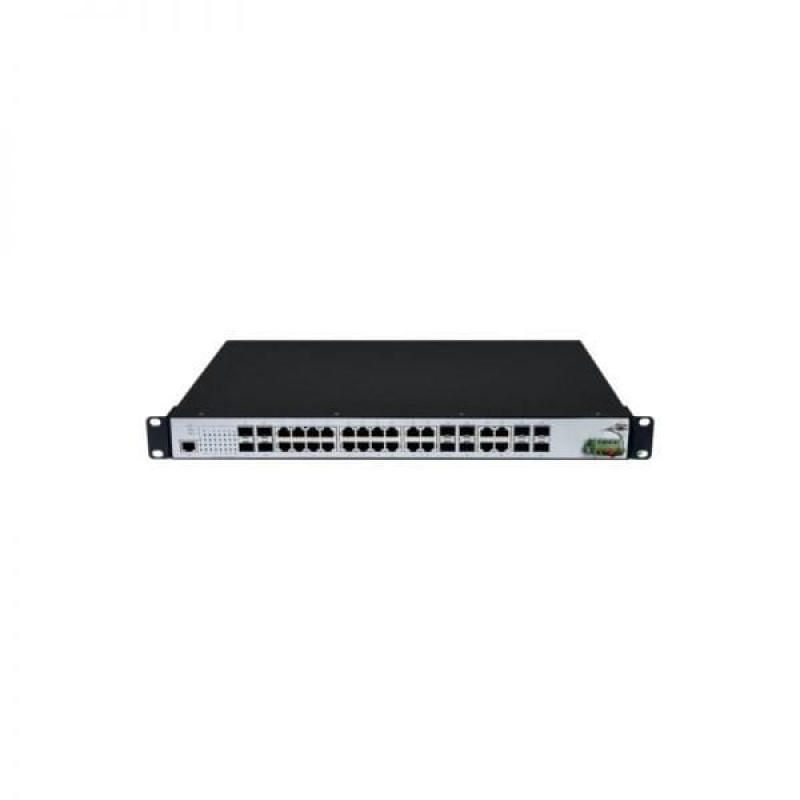

28-port Layer 3 industrial switch made from Anti-corrosion aluminum alloy, support 16 10/100/1000BaseT ports + 8 100/1000Base(X/T) Combo ports + 4 100/1000/10000BaseX SFP ports. 1U high, rack-mounted. IP30 protection class, operating temperature -40 ° C ~ +75 ° C. Dual isolated power inputs (100~240V).

Quick Spec

Table 1 shows the quick spec of the SRS2000-SC28HH4X8C16T.

Model SRS2000-SC28HH4X8C16T
Interface Configuration 16 10/100/1000BaseT ports + 8 100/1000Base(X/T) Combo ports + 4 100/1000/10000BaseX SFP
Input Voltage 100 ~ 240V, dual inputs
Fansless Yes
Backplane Bandwidth 108 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 440mm × 43.8mm × 200mm
17.33 inch x 1.73 inch x 7.87 inch
Weight 1.7 kg
3.75 lb
MTBF ≥300,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A

Product Features

  • ● All 1000M ports
    ● 56Gbps backplane bandwidth
    ● Wide and varied power supply range
    ● Non-rust aluminum alloy housing and torx screws
    ● Support network management
    ● All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
    ● Support one-click factory setting restoration and restart
    ● Support uploading and downloading configuration files
    ● Support IEEE 802.3af/at PoE
    ● Each PoE supports 802.1af and 802.1at
    ● Lightning protection: power port ±4KV, RJ45 port ±4KV
    ● IP40 protection class

    Supported Options

    Table 2 shows the supported options of the SRS2000-SC28HH4X8C16T.

    MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
    MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
    MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
    MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

    Compare to Similar Items

    Table 3 shows the comparison to similar items of the SRS2000-SC28HH4X8C16T.

    Product number Product description
    DS-3T3528 24GE + 4 GX SFP

    Get More Information

    Do you have any questions about the SRS2000-SC28HH4X8C16T price?

    Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 108 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-PIN terminal block
Dimensions (W x H x D) 440mm × 43.8mm × 200mm
EMC EN 55032EN 55035EN IEC61000-3-2EN61000-3-3FCC Part 15 Subpart B Class A
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Exchange Rate 148,800pps/100M port, 1,488,000pps/1000M port, 1,488,000,000pps/10000M
Freefall IEC 60068-2-31
Housing Aluminum Alloy Housing
Input Voltage 100 ~ 240V, dual inputs
Installasion Rack-Mounted
IP Rating IP40;
MAC Table Size 16K
Management Mode WEB browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP
MTBF ≥300,000H
Operating Temperature -40 ℃~ 75 ℃
Others Test Report from Ministry of Public Security, Network Access License, RoHS
Overload Current Protection Supported
Packet Buffer Size 12Mbti
Power Consumption 37W（without POE）
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1
Redundancy RSTP, STP, MSTP, Port Trunking, MRD-Ring
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Vibration IEC 60068-2-6
Weight 1.7 kg
