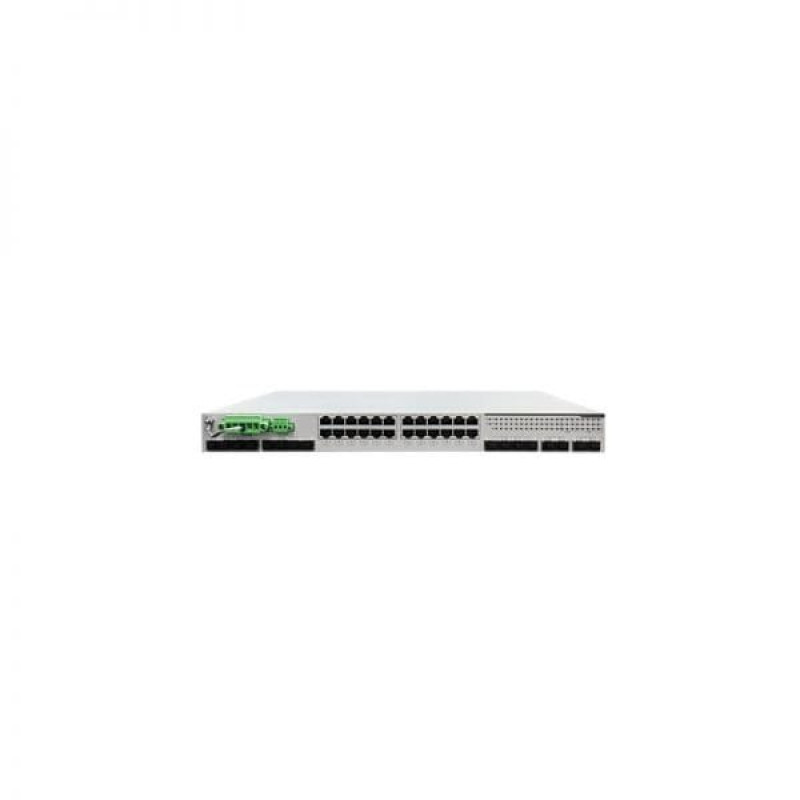

TNM4000-TP36HH4X12G24T
TNM4000-TP36HH4X12G24T

TNM4000-TP36HH4X12G24T

Нет отзывов
Код товара: MRD TNM4000-TP36HH4X12G24T
0 ₽
В наличии много 1000 шт

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports (SFP module not included). Stand- ard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP36HH4X12G24T.

Model TNM4000-TP36HH4X12G24T
Interface Configuration MAX 36 Ports
Input Voltage 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Fansless Yes
Backplane Bandwidth 160 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 442mm×43.8mm×335mm
17.41 inch x 1.73 inch x 13.19 inch
Weight 4 kg
8.82 lb
MTBF ≥800,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

● 36 Gigabit Ethernet ports, including 4 10G Ethernet ports
● Configurable by web browser, Telnet, CLI
● With functions of data packet dropout protection and quick recovery from network failure
● Support various multicast protocols and strong safety protection mechanism
● IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
● QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● RMON for proactive and efficient network monitoring
● Bandwidth management to prevent unpredictable network status
● Port mirroring for online debugging
● Isolated redundant power inputs
● Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TNM4000-TP36HH4X12G24T.

MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TNM4000-TP36HH4X12G24T.

Product number Product description
TNM4000-TP36HH4M12G24T 36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500BaseX SFP Ports (SFP module not included). Standard 19- inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Manage- ment Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Get More Information

Do you have any questions about the TNM4000-TP36HH4X12G24T price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 160 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-pin terminal block
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 442mm×43.8mm×335mm
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Installasion Rack-Mounted
IP Rating IP40;
MAC Table Size 32K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
MTBF ≥800,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 32 Mbti
Power Consumption 35W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121-4
Redundancy MSTP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP, SNTP
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Vibration IEC 60068-2-6
Weight 4 kg
