TNM4000-FAT40HH8X8G24
TNM4000-FAT40HH8X8G24

TNM4000-FAT40HH8X8G24

Нет отзывов
Код товара: MRD TNM4000-FAT40HH8X8G24
0 ₽
В наличии много 1000 шт

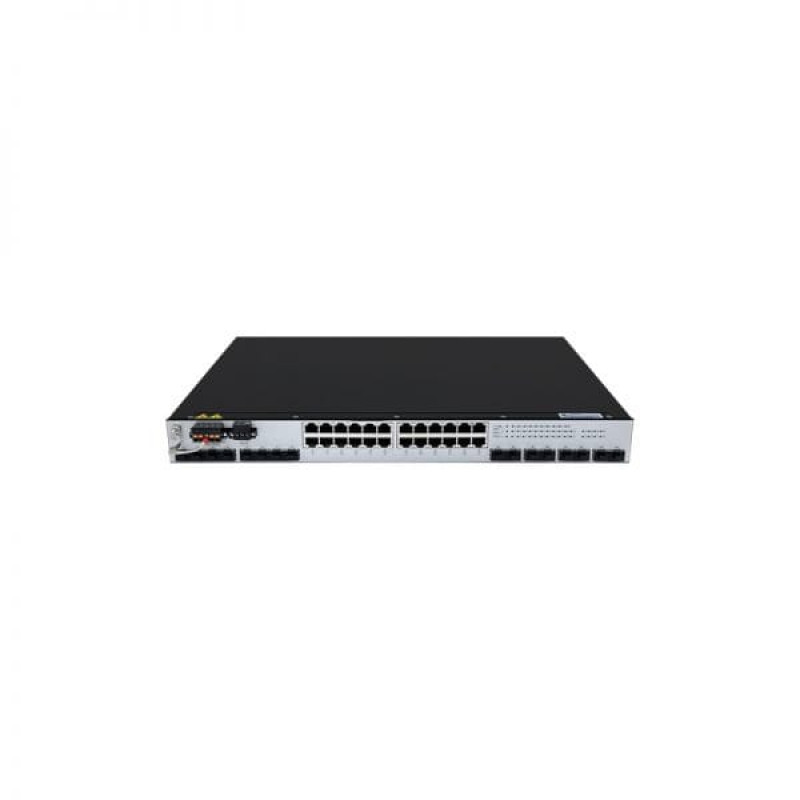

40-port Industrial Layer 3 TSN Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 24 10/100/1000BaseT Ports, 4 100/1000/2500/1000BaseX Ports, 4 1000/2500/10000BaseX SFP ports, 8 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 ZTP Button. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs. CENTAURI enabled.

Quick Spec

Table 1 shows the quick spec of the TNM4000-FAT40HH8X8G24

Model TNM4000-FAT40HH8X8G24
Interface Configuration 8 x 100/1000BaseX SFP
4 x 1000/2500/10000BaseX SFP
4 x 100/1000/2500/10000BaseX SFP
24 x 10/100/1000BaseT
Input Voltage 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Fansless Yes
Backplane Bandwidth 224 Gbps
Installasion Rack-Mounted
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 442mm×43.8mm×335mm
17.41 inch x 1.72 inch x 13.19inch
Weight 4 kg
8.82 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

 40GigabitEthernetports,including810GEthernetports
 Configurablebywebbrowser,Telnet,CLI
 Withfunctionsofdatapacketdropoutprotectionandquickrecoveryfromnetworkfailure  Supportvariousmulticastprotocolsandstrongsafetyprotectionmechanism
 IGMPsnoopingandGMRPforfilteringtrafficfromindustrialEthernetprotocols
 QoS(IEEE802.1p/1QandTOS/DiffServ)toincreasedeterminism
 SNMPv1/v2c/v3fordifferentlevelsofnetworkmanagement
 Bandwidthmanagementtopreventunpredictablenetworkstatus
 Portmirroringforonlinedebugging
 Isolatedredundantpowerinputs
 Fanless,-40°Cto85°Coperatingtemperaturerange
 MTBF≥600,000h

Supported Options

Table 2 shows the supported options of the TNM4000-FAT40HH8X8G24

MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Get More Information

Do you have any questions about the TNM4000-FAT40HH8X8G24 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 224 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-pin terminal block
Diagnosis Mode Indicator light, journal file, Relay, port mirroring, TRAP
Dimensions (W x H x D) 442mm×43.8mm×335mm
EMI FCC 47 CFR Part 15 Class A EN55032 Class AEN55035 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5
Exchange Rate 148, 800 pps/100M ports; 1, 488, 000 pps/1000M ports; 14, 880, 000 pps/10000M ports
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Die-casting aluminum alloy housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Installasion Rack-Mounted
IP Rating IP40;
MAC Table Size 32K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC3636 MAU, RFC2925 Ping MIB, MRD Private MIBs, SSH, HTTPS, Telnet
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 32 Mbti
Power Consumption 44W（without POE）
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121-4
Redundancy MSTP, RSTP, port trunking, HIPER-RING, MRP
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Switch Architecture MIPS32
Time Synchronization SNTP, PTPv2
Transportaon Industry EN50121-4
Vibration IEC 60068-2-6
Weight 4 kg
