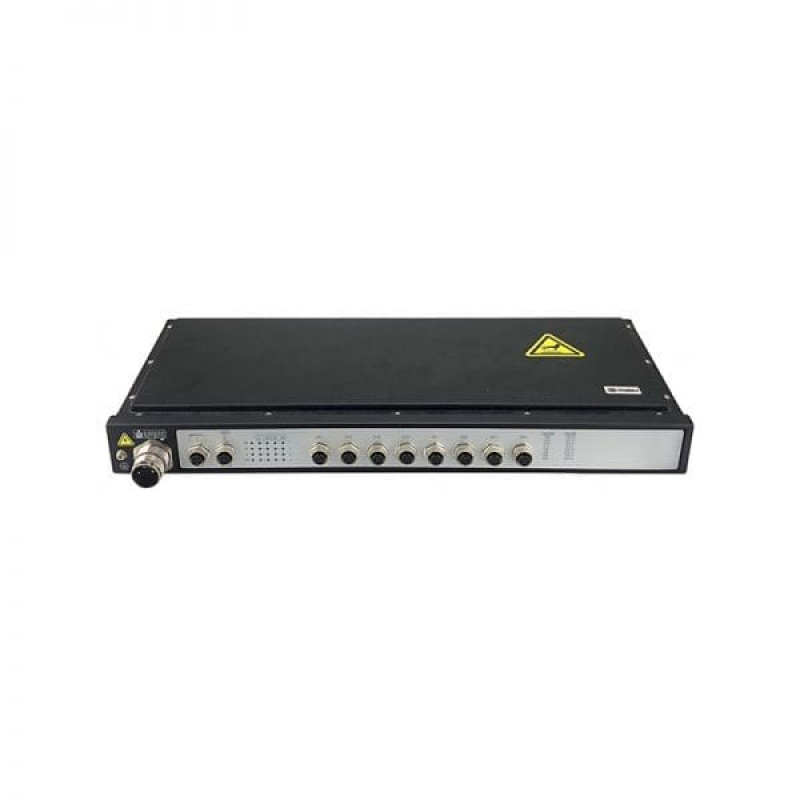

TCC4100-EHR0080I
TCC4100-EHR0080I

TCC4100-EHR0080I

Нет отзывов
Код товара: MRD TCC4100-EHR0080I
0 ₽
В наличии много 1000 шт

Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated 100-240V Power Supply.

Quick Spec

Table 1 shows the quick spec of the TCC4100-EHR0080I

Model TCC4100-EHR0080I
Interface Configuration 8 x M12 X-code 10/100/1000BaseT
Input Voltage 100-240V
Fansless Yes
Backplane Bandwidth 68 Gbps
Installasion Rack-Mounted
IP Rating IP54/IP67
Conformal Coated Optional
Dimensions (W x H x D) 440mm x 44.2mm x 200mm
17.32 inch x 1.74 inch x 7.87 inch
Weight 2 kg
4.41 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011;
Rail Industry EN50155; IEC/EN61373; EN50121;EN45545
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010
Shipbuilding Industry GL (pending)

Product Features

● Linear switches with high performance and flexible configuration
● Support up to 68Gbps backplane bandwidth
● Support up to 8 PoE ports
● Support Power-over-Ethernet (compliant with IEEE 802.3af/at standards)
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Support BYPASS function for be????er network reliability

Compare to Similar Items

Table 2 shows the comparison to similar items of the TCC4100-EHR0080I

Product number Product description
TCC4100-EMR0080I Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated Dual 100-240V Power Supply.
TCC4100-EHR00C0IBP Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated 100-240V Power Supply.
TCC4100-EMR00C0IBP Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated Dual 100-240V Power Supplies.
TCC4100-EHR00C0IP130BP Enhanced Layer3, 8 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports (M12 connector not included) and 4 M12 A-Code 10/100/1000BaseT Ports (Support BY-PASS Function). Isolated 100-240V Power Supply with Internal 130W PoE budget.

Get More Information

Do you have any questions about the TCC4100-EHR0080I price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 68 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
CPU 333MHz RISC
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 440mm x 44.2mm x 200mm
EMI FCC 47 CFR Part 15 Class A EN55032 Class AEN55035 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 4 IEC (EN )61000-4-9, Class 4
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010
Installasion Rack-Mounted
IP Rating IP54/IP67
MAC Table Size 16K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2925 Ping MIB, MRD Private MIBs
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 4Mbti
Power Consumption 35W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121, EN50155, IEC/EN61373
Redundancy MRD-Ring®, MSTP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry GL (pending)
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization SNTP
Transportaon Industry JT/T817-2011;
Vibration and Shock IEC 60068-2-6 ， IEC 60068-2-27
Weight 2 kg
