TCC4100-EHR0008P130
TCC4100-EHR0008P130
TCC4100-EHR0008P130
TCC4100-EHR0008P130
TCC4100-EHR0008P130
TCC4100-EHR0008P130

TCC4100-EHR0008P130

Нет отзывов
Код товара: MRD TCC4100-EHR0008P130
0 ₽
В наличии много 1000 шт

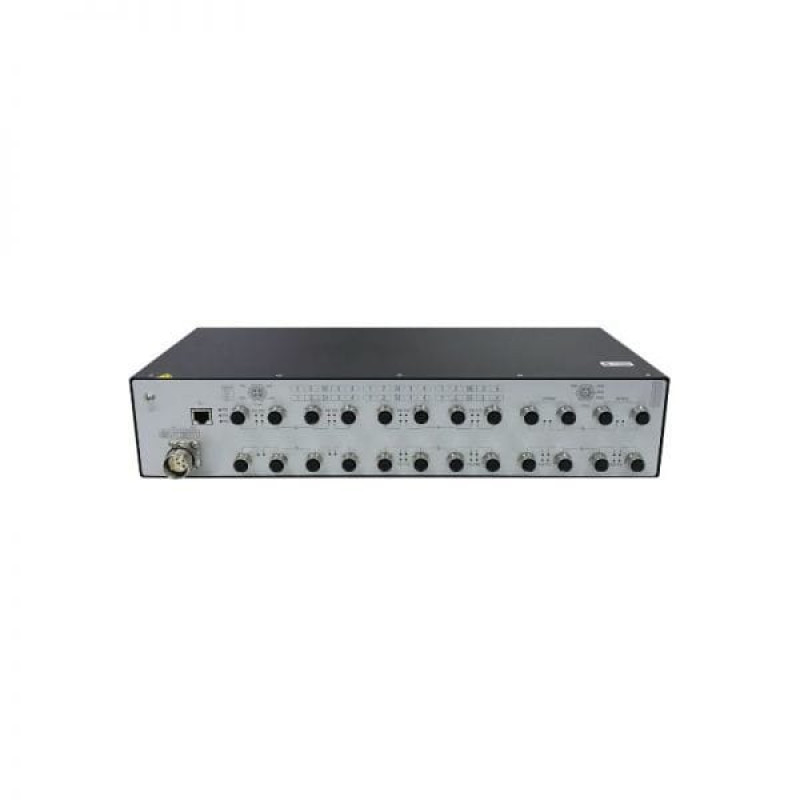

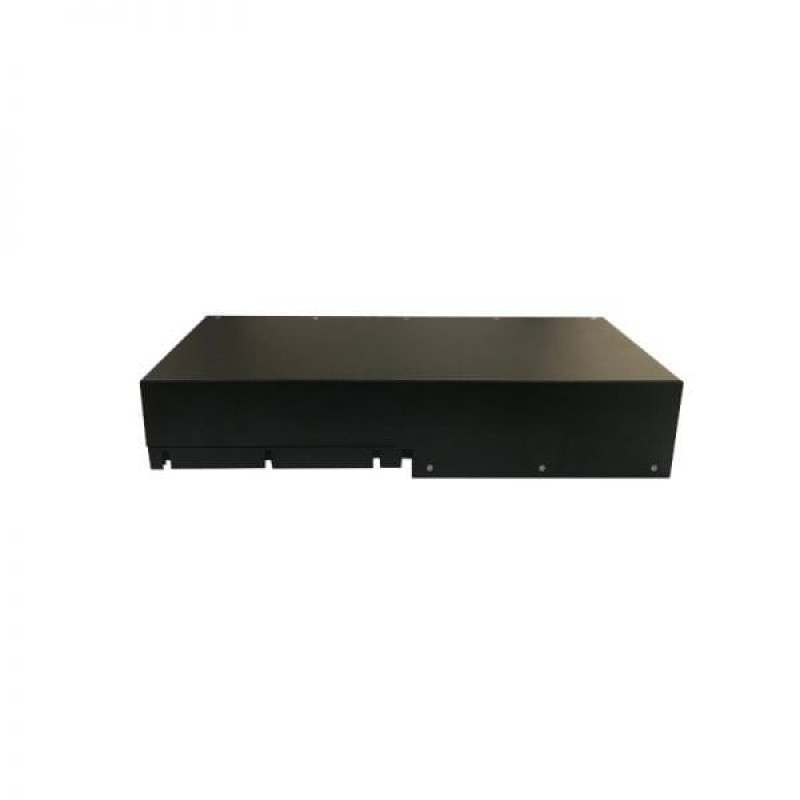

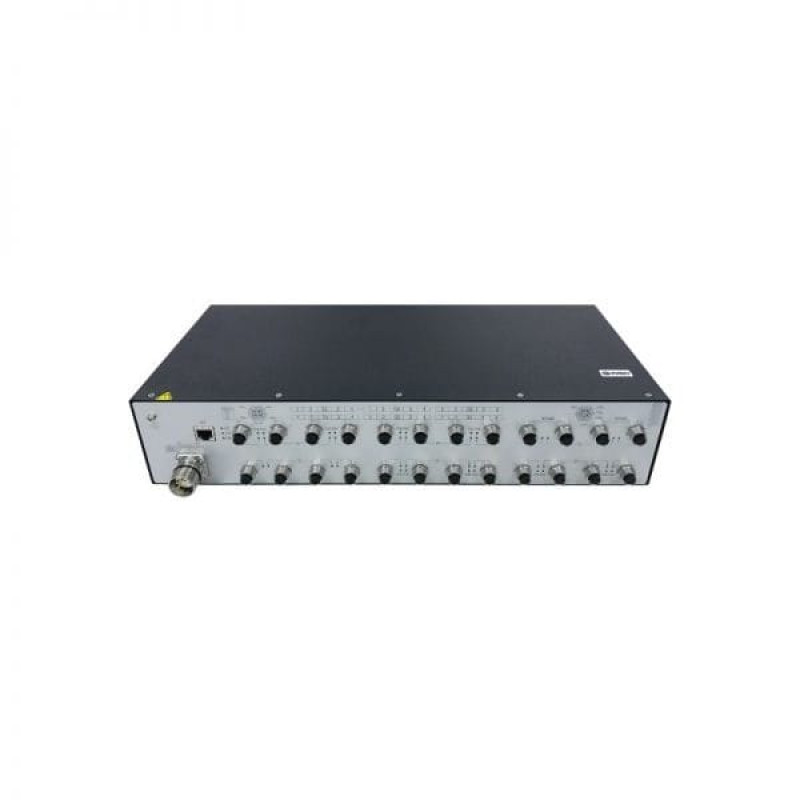

TCC4100-EHR008GP130BP Trainborne Industrial Switch is specially designed for rail transit and railway applications and compliant with EN50155/50121 standards. TCC4100-EHR008GP130BP can support 12 M12 D-code 802.3af/at PoE 10/100BaseT ports + 4 M12 D-code 10/100BaseT ports + 4 M12 A-code BY-PASS 10/100/100BaseT ports + 4 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports at most. Any two ports can establish a self-recovery ring, meanwhile, TCC4100-EHR008GP130BP Trainborne Industrial Switch supports multiple independent self-recovery rings. With hardware-based algorithm, the patented MRD-Ring® (MRDcom Real-Time Ring) technology ensures less than 5ms self-recovery time of every node and less than 50ms self-recovery time of the network.


TCC4100-EHR008GP130BP Trainborne Industrial Switch utilizes CPLD dynamic reconfiguration and repli‐ cate programming technology for high stability and reliability, various key operating parameters can be mon‐ itored locally and remotely. Advanced solution, extended industrial design, and patented technologies make TCC4100-EHR008GP130BP Trainborne Industrial Switch one of the top choices for harsh industrial environ‐ ments.

Quick Spec

Table 1 shows the quick spec of the TCC4100-EHR008GP130BP

Model TCC4100-EHR008GP130BP
Interface Configuration 4 M12 A-Code BY-PASS 10/100/1000BaseT Ports (M12 connector not included),
4 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports (M12 connector not included),
12 M12 D- Code 802.3af/at PoE 10/100BaseT Ports (M12 connector not included), and
4 M12 D-Code 10/100BaseT Ports (M12 connector not included)
Input Voltage 100-240V Power Supply with Internal 130W PoE budget
Fansless Yes
Backplane Bandwidth 14 Gbps
Installasion Rack mount
IP Rating IP41
Conformal Coated Optional
Dimensions (W x H x D) 440mm x 88.2mm x 200mm
17.32 inch x 3.47 inch x 7.87 inch
Weight 4.5 kg
9.9 lb
MTBF ≥600,000H
Operating Temperature -10°C~ 50°C
-10℉ ~ 122℉
Product Safety CE.CB.IEC.IECEE IEC/EN60950-1
FCC Part 15 Subpart B Class A
Rail Industry EN50121-4
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010

Product Features

● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
● Providing data packet loss protection mechanism for fast recovery from network failures
● Layer 3 routing multi-protocols meet dedicated network requirements, and providing smooth transition
mechanism for dedicated networks
● Support a variety of multicast protocols, with high security and prevention performance
● Providing graded bandwidth services in Ethernet services by providing rate limiting and traffic shaping
with Layer 2 QoS functions
● Providing statis and dynamic allocation and restriction functions for CPU resources, and enables real-time
monitoring of key operating parameters, including CPU usage, RAM, power supply voltage, motherboard
voltage, etc.
● With full set of professional network management and monitoring alarm tools and support OPC
● Support RIP, RIP2, OSPF, DHCP protocols, and support NAT address translation functions
● With IRIS, EN45545, IEC61373, IEC60068-2-32, EN50155, EN50121, ISO9001 and other related certifica‐
tions
● Support power-off BY-PASS functions to improve network reliability
● MTBF >600, 000 hours

Get More Information

Do you have any questions about the TCC4100-EHR008GP130BP price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 44Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 5-contact terminal block
Diagnosis Mode Indicator light, journal file, RMON, port mirroring, TRAP
Dimensions (W x H x D) 52mm x 140mm x 110mm
EMI FCC 47 CFR Part 15 Class AEN55032 Class AEN55035 Class A
EMS IEC (EN )61000-4-2, Class 4IEC (EN )61000-4-4, Class 4IEC (EN )61000-4-5, Class 4IEC (EN )61000-4-11, Class 4IEC (EN )61000-4-12, Class 4
Exchange Rate 148,800 pps/100M ports; 1,488,000 pps/1000M ports
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Die-casting aluminum alloy housing
Industrial Control Industry UL/cUL61010 (pending)
Input Voltage TOM1000-B6H/B10H: 100-240 VAC/VDC, single inputTOM1000-B6W/B10W: 18-60VDC, dual inputs TOM1000-B6F/B10F: 48-54VDC, dual inputsTOM1000-B10U: 18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Installasion DIN-rail mounting
IP Rating IP40; IP30(PoE model);
MAC Table Size 8K
Management Mode Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62
MTBF ≥400,000H
Operating Temperature -40 ℃~ 75 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Overload Current Protection Supported
Power Consumption 10W(Without PoE)
Power Industry IEC61850-3IEEE1613(C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEEIEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50121-4
RAM 128 MB
Redundancy RSTP, STP, MSTP, MRD-Ring®, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization NTP
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Vibration IEC 60068-2-6
Weight 0.7kg
