TCC4100-CU80G0
TCC4100-CU80G0

TCC4100-CU80G0

Нет отзывов
Код товара: MRD TCC4100-CU80G0
400 614 ₽
В наличии много 1000 шт

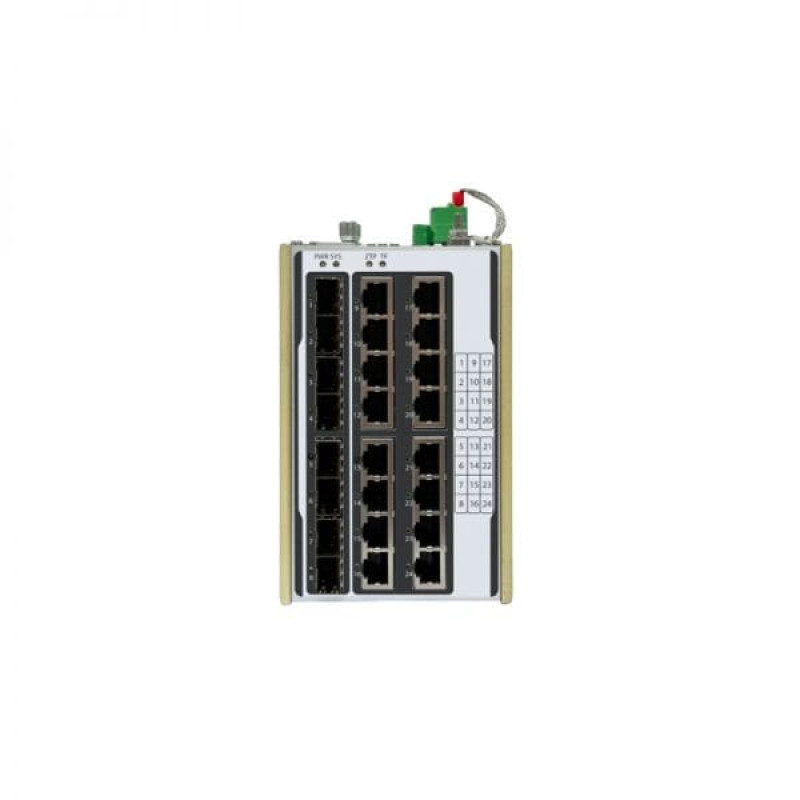

TCC4100 Layer3 Industrial Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8100/1000/2500BaseX SFP Ports (SFP module not included) and 16 10/100/1000BaseT Ports, Isolated Dual Universal Power Inputs (18~300VDC or 90~264VAC ). IP40 protection class. Working Temperature –40°C ~ +85°C.

Quick Spec

Table 1 shows the quick spec of the TCC4100-CU80G0.

Model TCC4100-CU80G0
Interface Configuration 8 x 100/1000/2500BaseX SFP Ports
16 x 10/100/1000BaseT Ports
Input Voltage 18~300VDC or 90~264VAC
Fansless Yes
Backplane Bandwidth 72 Gbps
Installasion DIN-Rail
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 88mm x 140mm x 110mm
3.47 inch x 5.51 inch x 4.34inch
Weight 1.4 kg
3.09 lb
MTBF ≥600,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010
Shipbuilding Industry GL (pending)

Product Features

● Linear switches with high performance and flexible configuration
● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
● Support Dying gasp function and initiatively report power-down state through SNMP protocol
● Built-in unified MicOS real-time operating systems for all MRD™ switches
● Dual redundant power inputs design
● Fanless, -40 to 85°C wide operating temperature range
● MTBF >600, 000 hours

Supported Options

Table 2 shows the supported options of the TCC4100-CU80G0.

MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TCC4100-CU80G0.

Product number Product description
MDS-G4020-T 16 x FE(MOXA) +4 x GE

Get More Information

Do you have any questions about the TCC4100-CU80G0 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 72 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-pin terminal block
CPU 333MHz RISC
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 88mm x 140mm x 110mm
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC (EN)61000-4-2, Class 4IEC (EN)61000-4-4, Class 3IEC (EN)61000-4-5, Class 4IEC (EN)61000-4-8, Class 5IEC (EN)61000-4-11, Class 4IEC (EN)61000-4-12, Class 3
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M;
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Aluminum Alloy Housing
Industrial Control Industry UL/cUL61010
Input Voltage 18~300VDC or 90~264VAC
Installasion DIN-Rail
IP Rating IP40;
MAC Table Size 16K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPS, Telnet
MTBF ≥600,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, supportJumbo Frame
Overload Current Protection Supported
Packet Buffer Size 4Mbit
Power Consumption 28W
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50155; IEC/EN61373; EN50121
Redundancy MRD-Ring® , MRP, RSTP, port trunking
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Time Synchronization SNTP
Transportaon Industry JT/T817-2011
Vibration IEC 60068-2-6
Weight 1.4 kg
