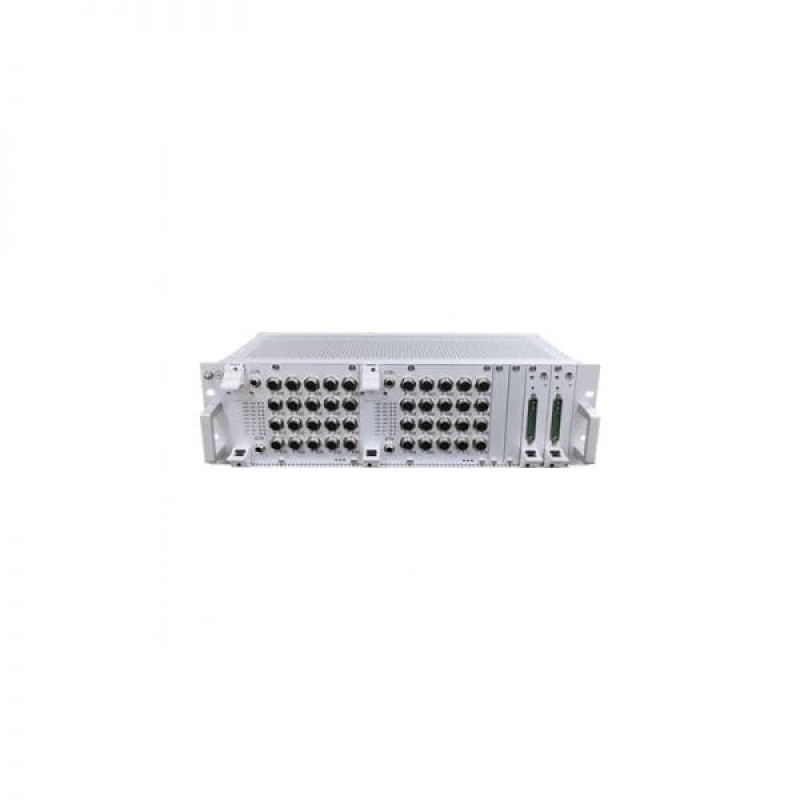

TCC4100-CRECNL3
TCC4100-CRECNL3

TCC4100-CRECNL3

Нет отзывов
Код товара: MRD TCC4100-CRECNL3
0 ₽
В наличии много 1000 шт

CRRC standardized 3U high rack-mounted ETBN/ECN layer-3 ECNN-A switch, 24 M12 D-code 10/100BaseT ports and 4 M12 X-code 10/100/1000BaseT ports (support BY-PASS), hot swappable redundant dual power, meet the ETBN networking requirements of CRRC.

Quick Spec

Table 1 shows the quick spec of the TCC4100-CRECNL3

Model TCC4100-CRECNL3
Interface Configuration 24 x M12 D-code 10/100BaseT
4 x M12 X-code 10/100/1000BaseT
Input Voltage 110VDC (77~137.5VDC), support anti-reverse
Fansless Yes
Backplane Bandwidth 68 Gbps
Installasion Rack-Mounted
IP Rating IP20;
Conformal Coated Optional
Dimensions (W x H x D) 441.8mm x 132.5mm x 230mm
17.41 inch x 5.22 inch x 9.06 inch
Weight 4 kg
8.82 lb
MTBF ≥450,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Dry Heat Test IEC 60068-2-2
Low Temperature Test IEC 60068-2-1
Rail Industry EN50121, EN50155
Cyclic Damp Heat Test IEC 60068-2-30
Insulation Test EN 50155-13.4.9

Product Features

● Conform to IEC61375-2-5 and IEC61375-2-3
● Starting-up time less than 1 minute
● Support BYPASS function, switching time less
than 160ms
● Support QoS, allowing real-time traffic classifi-
cation and priority
● Support LLDP, realized automatic topology dis-
● Support port mirroring and port filtering, real- ized data frame filtering based on MAC ad- dress
● Support port aggregation, bandwidth manage- ment, traffic control, dynamic multicast, IGMP -Snooping etc.
● Support link aggregation
covery, convenient for visual management
● Support summary statistics of interface mes- down
sage sending and receiving packets, and port
rate.
● Support loop detection, master node supports
dynamic election to prevent mis-operation from causing network loop and further causing network storm.
● Support file management, log management, port statistics, 802.1Q Vlan.
● Support RTC, clock keeps running a????er power failure
● The PCB adopts three-proof processed
● Fanless, -40 to 85°C wide operating tempera-
ture range
● MTBF >450, 000 hours

Get More Information

Do you have any questions about the TCC4100-CRECNL3 price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 68 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Cyclic Damp Heat Test IEC 60068-2-30
Diagnosis Mode Indicator light, journal file, relay, RMON, port mirroring, TRAP
Dimensions (W x H x D) 441.8mm x 132.5mm x 230mm
Dry Heat Test IEC 60068-2-2
EMI 　
EMS IEC (EN )61000-4-2, Class 3 IEC (EN )61000-4-4, Class 3 IEC (EN )61000-4-5, Class 3 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5 IEC 61000-4-29, Class B
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Fire Protection and Safety EN 45545, EN 50153
Freefall IEC 60068-2-31
Housing Aluminum Alloy Housing
Input Voltage 110VDC (77~137.5VDC), support anti-reverse
Installasion Rack-Mounted
Insulation Test EN 50155-13.4.9
IP Rating IP20;
Low Temperature Test IEC 60068-2-1
MAC Table Size 16K
Management Mode Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC 2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, Telnet
MTBF ≥450,000H
Operating Temperature -40 ℃ ~ 85 ℃
Others 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Overload Current Protection Supported
Packet Buffer Size 4 Mbti
Power Consumption 35W
Power Supply Test EN 50155
Processing Type Store-and-Forward
Rail Industry EN50121, EN50155
Redundancy STP, RSTP, MSTP, Port Trunking
Reverse Polarity Protection Supported
Storage Temperature -40 ℃ ~ 85 ℃
Stress Test EN 50155-13.4.9
Time Synchronization SNTP
Vibration and Shock IEC 61373
Weight 4 kg
