TOM1000-A10F2080P
TOM1000-A10F2080P

TOM1000-A10F2080P

Нет отзывов
Код товара: MRD TOM1000-A10F2080P
0 ₽
В наличии много 1000 шт

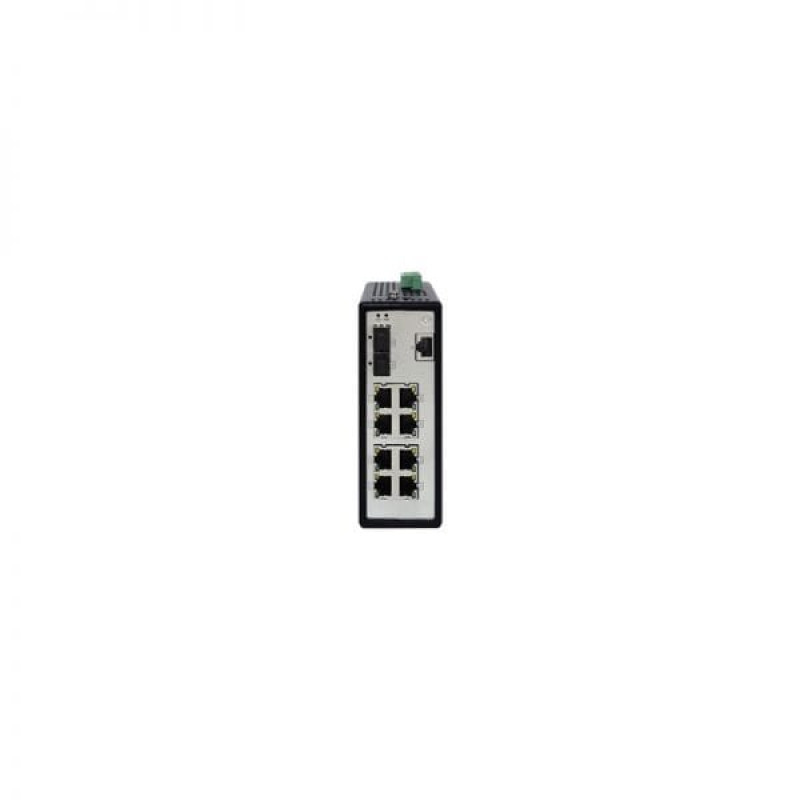

TOM1000 Unmanaged Industrial Switch made from Anti-Corrosion Casting
Aluminum Alloy. 2 100/1000BaseX SFP Ports (SFP module not included),
8 802.3af/at PoE 10/100/1000BaseT Ports. IP30 Protection Class, Operating
Temperature from -40°C to +75°C, and MTBF over 400K hours. Isolated dual
48-54VDC Power Inputs. Power Cable Order Separately.

Quick Spec

Table 1 shows the quick spec of the TOM1000-A10F2080P

Model TOM1000-A10F2080P
Interface Configuration 2 x 100/1000BaseX SFP Ports
8 x 10/100/1000BaseT Ports
Input Voltage 48-57VDC,
Fansless Yes
Backplane Bandwidth 20 Gbps
Installasion DIN-Rail
IP Rating IP30;
Conformal Coated Optional
Dimensions (W x H x D) 52mm x 140mm x 110mm
2.05 inch x 5.51 inch x 4.34inch
Weight 0.7 kg
1.54 lb
MTBF ≥400,000H
Operating Temperature -40 °C~ 85 °C
-40°F ~ 185°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry JT/T817-2011; NEMA-TS2 (pending)
Rail Industry EN50121-4
Power Industry IEC61850-3
IEEE1613 (C37.90.x)
Industrial Control Industry UL/cUL61010 (pending)
Shipbuilding Industry GL (pending)

Product Features

● Full Gigabit Ethernet ports
● 20Gbps backplane bandwidth
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Dual redundant power inputs design for DC models
● IP40 Die-casting aluminum alloy housing
● Fanless, -40°C to 75°C wide operating temperature range
● MTBF≥ 400,000 hours

Supported Options

Table 2 shows the supported options of the TOM1000-A10F2080P

MDP-IE150P-54 150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation)
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 54VDC/2.78A
Operating Temperature from -40°C to +75°C with conventional cooling
MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the TOM1000-A10F2080P price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 20 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 5-contact terminal block
Dimensions (W x H x D) 52mm x 140mm x 110mm
EMI FCC 47 CFR Part 15 Class A EN55032 Class AEN55035 Class A
EMS IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4
Exchange Rate 148,800 pps/100M; 1,488,000 pps/1000 M;
Freefall IEC 60068-2-31
Hazardous Area UL/cUL1604 Class 1 Div 2 (pending)
Housing Die-casting aluminum alloy housing
Industrial Control Industry UL/cUL61010(pending)
Input Voltage 48-57VDC,
Installasion DIN-Rail
IP Rating IP30;
MAC Table Size 4K
Management Mode 　
MTBF ≥400,000H
Operating Temperature -40 ℃ ~ 85 ℃
Overload Current Protection Supported
Power Consumption 15W（without POE）
Power Industry IEC61850-3 IEEE1613 (C37.90.x)
Processing Type Store-and-Forward
Product Safety CE.CB.IEC.IECEE IEC/EN62368-1FCC Part 15 Subpart B Class A
Rail Industry EN50155; IEC/EN61373; EN50121
RAM 　
Reverse Polarity Protection Supported
Shipbuilding Industry DNV-GL (pending)
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Transportaon Industry JT/T817-2011(pending)
Vibration IEC 60068-2-6
Weight 0.7 kg
