SDS300-W6R2040
SDS300-W6R2040

SDS300-W6R2040

Нет отзывов
Код товара: MRD SDS300-W6R2040
6 168 ₽
В наличии много 1000 шт

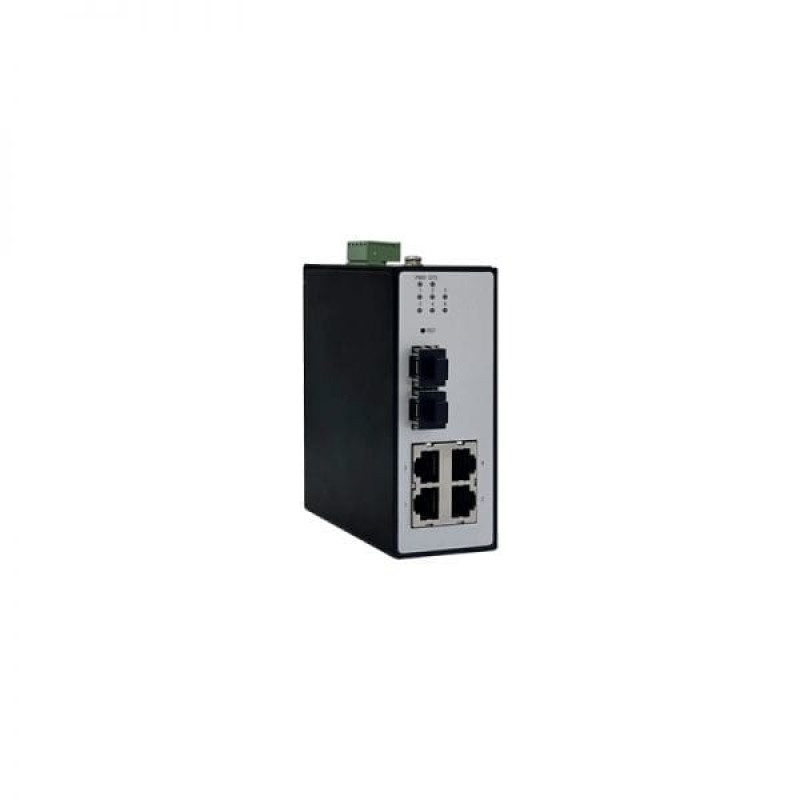

6-Port DIN-Rail WEB Managed Industrial Switch made from Anti-Corrosion aluminum alloy, support 2 100/1000BaseX SFP ports (SFP module not included) + 4 10/100/1000BaseT ports. IP40 protection class. Operating temperature -25°C ~ +75°C. Dual redundant power inputs, 9.6~60VDC & 18~30VAC.

Quick Spec

Table 1 shows the quick spec of the SDS300-W6R2040

Model SDS300-W6R2040
Interface Configuration 2 x 10/100/1000 BaseX SFP
4 x 10/100/1000 BaseT
Input Voltage 9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Fansless Yes
Backplane Bandwidth 14 Gbps
Installasion DIN-rail mounting
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 42mm × 110mm × 105mm
1.65 inch x 4.33 inch x 4.1 inch
Weight 0.4 kg
0.88 lb
MTBF ≥300,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A

Product Features

  • ● All 1000M ports
  • ● 14Gbps backplane bandwidth
  • ● Wide and varied power supply range
  • ● Non-rust aluminum alloy housing and torx screws
  • ● Support WEB Management
  • ● All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
  • ● Support one-click port isolation and self-healing ring network
  • ● Support one-click factory settings restoration and restart
  • ● Support uploading and downloading configuration files
  • ● Lightning protection: power supply ±4KV, RJ45 port ±4KV

    Supported Options

    Table 2 shows the supported options of the SDS300-W6R2040

    MDP-IE50W-24 50W Industrial DIN-Rail Power Supply.
    Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
    Output: 24VDC/2.08A
    Operating Temperature from -40°C to +75°C with conventional cooling
    Class 2 Power Supply
    MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
    MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
    MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
    MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
    MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

    Compare to Similar Items

    Table 3 shows the comparison to similar items of the SDS300-W6R2040

    Product number Product description
    DS-3T1306 2 x GX SFP + 4 x FE (HIKVISION）MTBF=100,000 h

    Get More Information

    Do you have any questions about the SDS300-W6R2040 price?

    Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 14 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-PIN terminal block
Dimensions (W x H x D) 42mm × 110mm × 105mm
DIP Switch VLAN, RSTP
EMC EN 55032EN 55035EN IEC61000-3-2EN61000-3-3FCC Part 15 Subpart B Class A
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Exchange Rate 1,488,000 pps/1000M ports
Freefall IEC 60068-2-31
Housing Die-casting aluminum alloy housing
Input Voltage 9.6~60 VDC & 18~30 VAC
Installasion DIN-rail mounting
IP Rating IP40;
MAC Table Size 2K
Management Mode WEB based on HTTP, SNMPv1, SNMPv2
MTBF ≥300,000H
Operating Temperature -40 ℃~ 75 ℃
Others Test Report from Ministry of Public Security, Network Access License, RoHS
Overload Current Protection Supported
Packet Buffer Size 1Mbit
Power Consumption 10W
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1
Redundancy RSTP
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Vibration IEC 60068-2-6
Weight 0.4 kg
