SDS300-A10R0208-S-SC
SDS300-A10R0208-S-SC

SDS300-A10R0208-S-SC

Нет отзывов
Код товара: MRD SDS300-A10R0208-S-SC
0 ₽
В наличии много 1000 шт

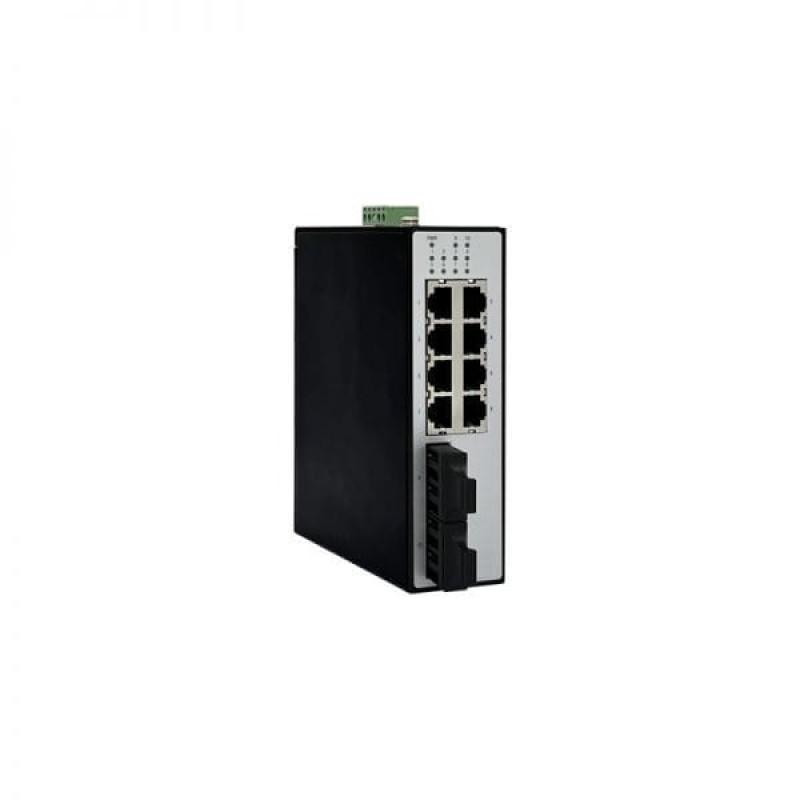

10-Port DIN-Rail Unmanaged Industrial Switch made from Anti-Corrosion aluminum alloy, support 2 100BaseX Fixed Fiber Port (40KM/SM/SC) + 8 10/100BaseT port. DIN-Rail mounted. IP40 protection class. Operating temperature -25°C ~ +75°C. Dual redundant power inputs, 9.6~60VDC and 18~30VAC.

Quick Spec

Table 1 shows the quick spec of the SDS300-A10R0208-S-SC

Model SDS300-A10R0208-S-SC
Interface Configuration 2 x 10/100 BaseX
8 x 10/100 BaseT
Input Voltage 9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Fansless Yes
Backplane Bandwidth 5.6 Gbps
Installasion DIN-rail mounting
IP Rating IP40;
Conformal Coated Optional
Dimensions (W x H x D) 42mm × 140mm × 110mm
1.65 inch x 5.51 inch x 4.33 inch
Weight 0.6 kg
1 lb
MTBF ≥300,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A

Product Features

  • ● Support multiple fixed fiber ports, SC single mode, SC multiple mode, ST multiple mode etc.
  • ● Backplane bandwidth can be up to 5.6Gbps
  • ● Wide and varied power supply range
  • ● Non-rust aluminum alloy housing and torx screws
  • ● All ports support line speed forwarding and automatic turnover, supporting long distance transmission
  • ● Lightning protection: power supply ±4KV, RJ45 port ±4KV
  • ● IP40 protection class
  • ● Small and easy to install, plug and play without configuring
  • ● Fanless design, wide working temperature and quiet operation

    Supported Options

    Table 2 shows the supported options of the SDS300-A10R0208-S-SC

    MDP-IE50W-24 50W Industrial DIN-Rail Power Supply.
    Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
    Output: 24VDC/2.08A
    Operating Temperature from -40°C to +75°C with conventional cooling
    Class 2 Power Supply

    Compare to Similar Items

    Table 3 shows the comparison to similar items of the SDS300-A10R0208-S-SC

    Product number Product description
    SDS300-A10R0208-C-SC 2 FX(SC) + 8 FE, Single 1310+1550 single mode 20km
    SDS300-A10R0208-Y-ZZ For other fixed connector of fiber ports

    Get More Information

    Do you have any questions about the SDS300-A10R0208-S-SC price?

    Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 5.6 Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 5-PIN terminal block
Dimensions (W x H x D) 42mm × 140mm × 110mm
EMC EN 55032EN 55035EN IEC61000-3-2EN61000-3-3FCC Part 15 Subpart B Class A
EMI FCC 47 CFR Part 15 Class AEN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Ethernet Interface Diagnosis Mode
Exchange Rate 148,800 pps/100M ports; 1,488,000 pps/1000M ports
Freefall IEC 60068-2-31
Housing Die-casting aluminum alloy housing
Input Voltage 9.6~60 VDC & 18~30 VAC
Installasion DIN-rail mounting
IP Rating IP40;
MAC Table Size 8K
MTBF ≥300,000H
Operating Temperature -40 ℃~ 75 ℃
Others Test Report from Ministry of Public Security, Network Access License, RoHS
Overload Current Protection Supported
Packet Buffer Size 4.1Mbti
Power Consumption 10W
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Vibration IEC 60068-2-6
Weight 0.6 kg
