MTX140-A16R000G
MTX140-A16R000G

MTX140-A16R000G

Нет отзывов
Код товара: MRD MTX140-A16R000G
0 ₽
В наличии много 1000 шт

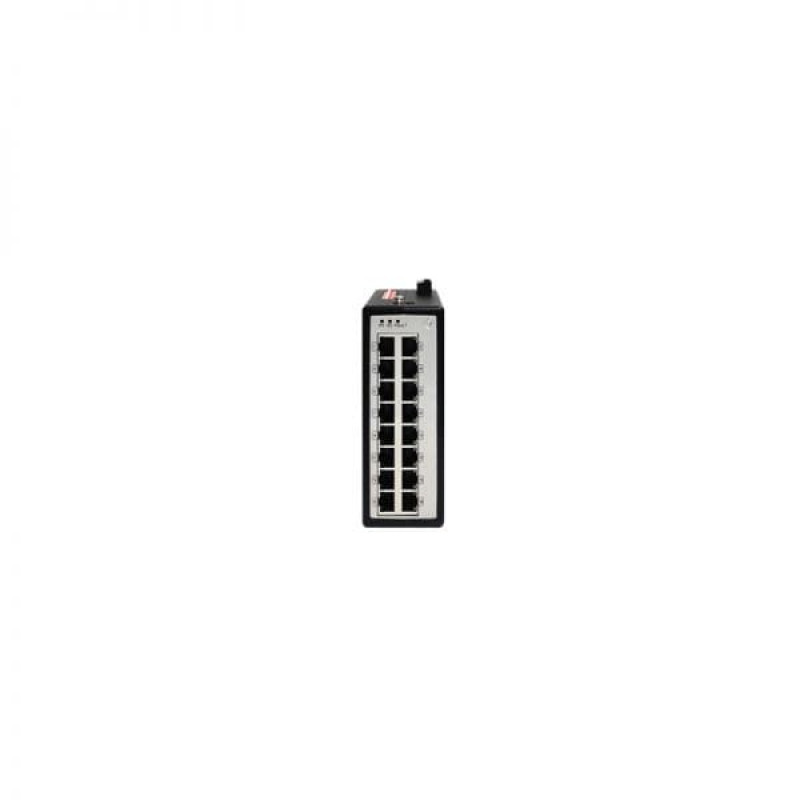

MTX140 16-port Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy. 16 10/100BaseT Ports. DIP-enabled Sound & Light Alarm Output & 1 Alarm Relay port (1A@24VDC). IP30 Protection Class, Operating Temperature from -40°C to +75°C. Dual 12/24/48 VDC (9.6~60 VDC ) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).

Quick Spec

Table 1 shows the quick spec of the MTX140-A16R000G

Model MTX140-A16R000G
Interface Configuration 16 x 10/100 BaseT
Input Voltage 12/24/48 VDC & 24 VAC
Fansless Yes
Backplane Bandwidth 8.8Gbps
Installasion DIN-rail mounting
IP Rating IP30;
Conformal Coated Optional
Dimensions (W x H x D) 52mm × 140mm × 110 mm
2.04 inch x 5.51 inch x 2.43 inch
Weight 1kg
2.2 lb
MTBF ≥400,000H
Operating Temperature -40 °C~ 75 °C
-40°F ~ 167°F
Product Safety CE.CB.IEC.IECEE
IEC/EN62368-1
FCC Part 15 Subpart B Class A
UL/cUL61010

Product Features

● Industrial-grade Chip
● Compact size for easy installation
● QoS supported to process critical data in heavy traffic
● Die-casting aluminum alloy housing
● IP30 or IP40 protection class
● Dual power inputs
● Fanless, -40°C to 75°C(IP30) or -10°C to 60°C(IP40) wide operating temperature range

Supported Options

Table 2 shows the supported options of the MTX140-A16R000G

MDP-IE50W-24 50W Industrial DIN-Rail Power Supply.
Input: 110/220 VAC/VDC (90~264VAC/88~300VDC)
Output: 24VDC/2.08A
Operating Temperature from -40°C to +75°C with conventional cooling
Class 2 Power Supply

Compare to Similar Items

Table 3 shows the comparison to similar items of the MTX140-A16R000G

Product number Product description
MTX100-A16R000GL MTX140 16-port Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy. 16 10/100BaseT Ports. DIP-enabled Sound & Light Alarm Output & 1 Alarm Relay port (1A@24VDC). IP40 Protection Class, Operating Temperature from -10°C to +60°C. Dual 12/24/48 VDC (9.6~60 VDC ) & 24VAC (18~30 VAC) Power Input (Only connect to class 2 power supply).
EDS-2016-ML 16 x FE(MOXA) -10 to 60°C(MOXA)
EDS-2016-ML-T 16 x FE(MOXA) -40 to 75°C(MOXA)

Get More Information

Do you have any questions about the MTX140-A16R000G price?

Contact us now via Live Chat or sales@router-switch.com.

Характеристики

Ambient Relative Humidity 5 % ~ 95% (non-condensing)
Backplane Bandwidth 8.8Gbps
Circuit Board Approved by IPC
Conformal Coated Optional
Connection 1 removable 6-contact terminal block
Dimensions (W x H x D) 52mm × 140mm × 110 mm
EMI FCC Part 15 Subpart B Class A EN 55032 Class AEN 55035 Class A
EMS IEC(EN)61000-4-2, Class 3 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 3 IEC(EN)61000-4-5, Class 3 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5 IEC(EN)61000-4-18, Class 3
Ethernet Interface Quality of Service (QoS), Power Alarm
Exchange Rate 148,800 pps/100M ports;
Freefall IEC 60068-2-31
Hazardous Area EN55032EN55024EN61000-3-2EN61000-3-3EN61000-6-2EN61000-6-4FCC Part 15 Subpart B Class A
Housing Die-casting aluminum alloy housing
Input Voltage 9.6~60 VDC & 18~30 VAC
Installasion DIN-rail mounting
IP Rating IP30;
MAC Table Size 8K
MTBF ≥400,000H
Operating Temperature -40 ℃~ 75 ℃
Overload Current Protection Supported
Packet Buffer Size 4 MB
Power Consumption 10W
Processing Type Store-and-Forward
Product Safety EN/IEC62368-1 UL/cUL61010
Reverse Polarity Protection Supported
Shock IEC 60068-2-27
Storage Temperature -40 ℃ ~ 85 ℃
Vibration IEC 60068-2-6
Weight 1kg
