Buffer Size
22 MB
Cooling
Airflow out (AFO)
Dimensions (WxDxH)
17.4 x 21.7 x 1.72 inches
Forwarding Mode
Cut-through and Store-and-Forward
Forwarding Performance
2 Billion packets per second (Bpps)
Interfaces
32 x 100GbE QSFP28
IPv4 Routes
128,000
IPv6 Routes
64,000
Jumbo Frames
Up to 9216 bytes
Latency
750 ns
MAC Addresses
288,000
Model

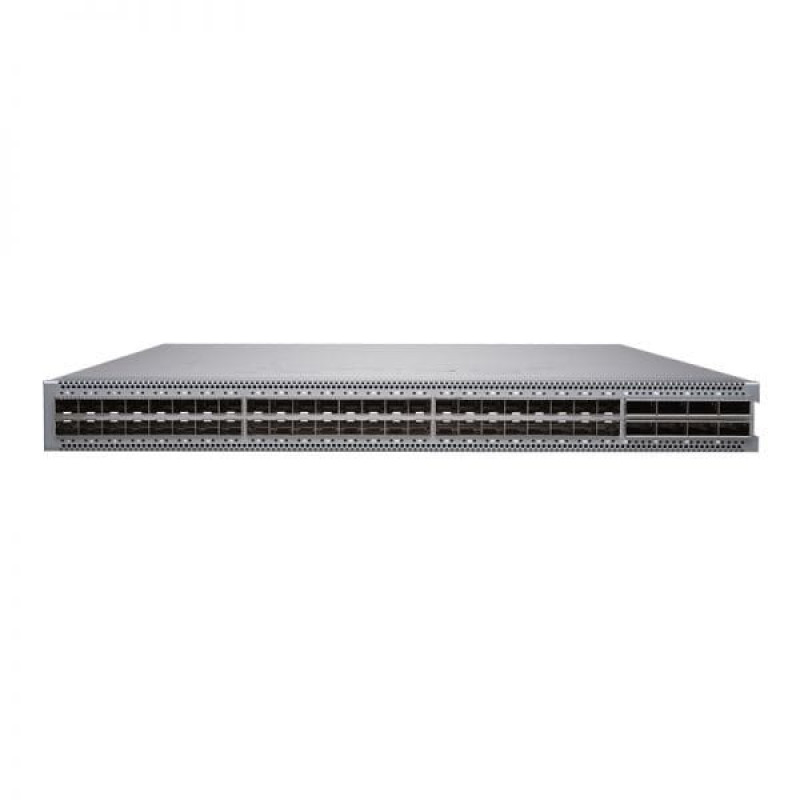

QFX5120-32C-AFO
Multicast Groups
8,000
Operating Humidity
5% to 95% non-condensing
Operating Temperature
0°C to 40°C
Power Consumption
400 Watts
Power Supply
Dual redundant, hot-swappable AC or DC
Storage Temperature
-40°C to 70°C
Switching Capacity
6.4 Tbps
VLAN IDs
4094
