Brand
HPE
Compliant Standards
IEEE 802.1ag, IEEE 802.3az
Device Type
Switch - 4 slots
Dimensions (WxDxH)
17.32 x 18.98 x 1.73 in
Enclosure Type
Rack-mountable 1U
Features
flow control, layer 3 switching, VLAN support, IPv6 support
Firmware Type
Field upgradeable
Flash Memory
512 MB
Jumbo Frame Support
up to 9216 bytes
MAC Address Table Size
288K entries
Management Interface
CLI, SNMP, Web-based GUI
Model Number
JH398A
Operational Humidity Range
10 - 90% (non-condensing)
Operational Temperature Range
0°C to 45°C (32°F to 113°F)
Performance
Up to 1.44 Tbps switching capacity
Ports
0
Power Device
Internal power supply - hot-plug
Power Supply
Dual redundant power supplies (optional)
Product Name

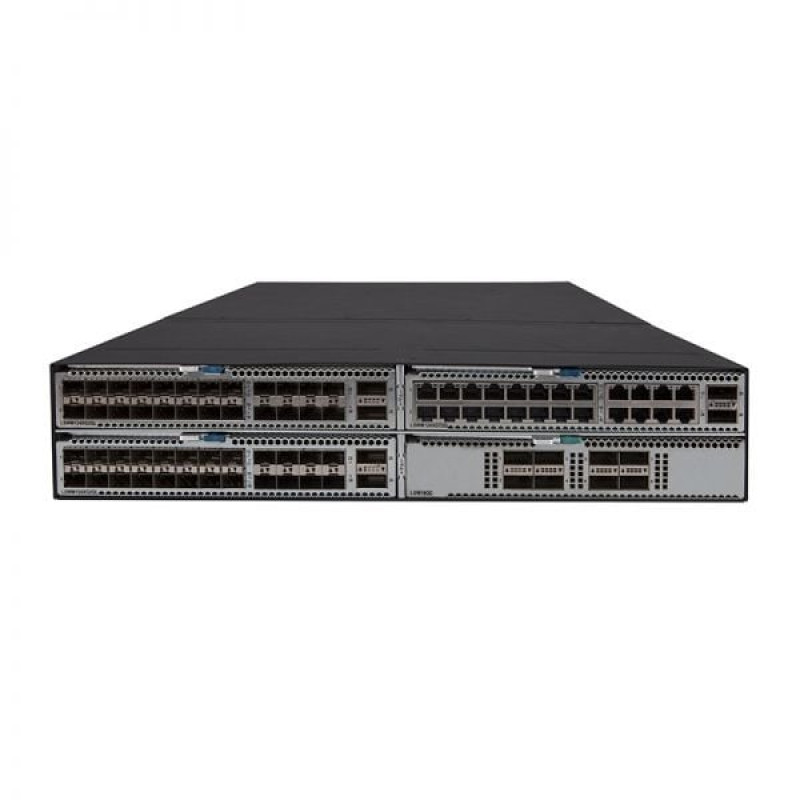

HPE FlexFabric 5940 4-slot Switch
RAM
2 GB
Routing Protocol
Static, RIP, OSPF, BGP, IS-IS, MPLS
Throughput
Up to 1071 Mpps
