Brand
HPE
Cooling
Redundant, hot-pluggable fan tray
Dimensions (W x D x H)
17.32 x 26 x 1.72 in (43.97 x 66 x 4.37 cm)
Environment-friendly
Energy Efficient Ethernet (EEE)
Form Factor
1U height
Latency
Low latency
Management Features
IMC - Intelligent Management Center, command-line interface, SNMP, RMON, sFlow, HTTPS
Memory and Processor
Integrated ARM Cortex-A9 @ 1016 MHz with 2 GB DDR3 SDRAM, 8 GB eMMC
Networking Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ag
Operating System
Comware 7
Ports
32 QSFP+ ports
Power Consumption
Typical: 405 W, Maximum: 1150 W
Power Supply
Dual hot-pluggable power supplies (optional)
Product Name

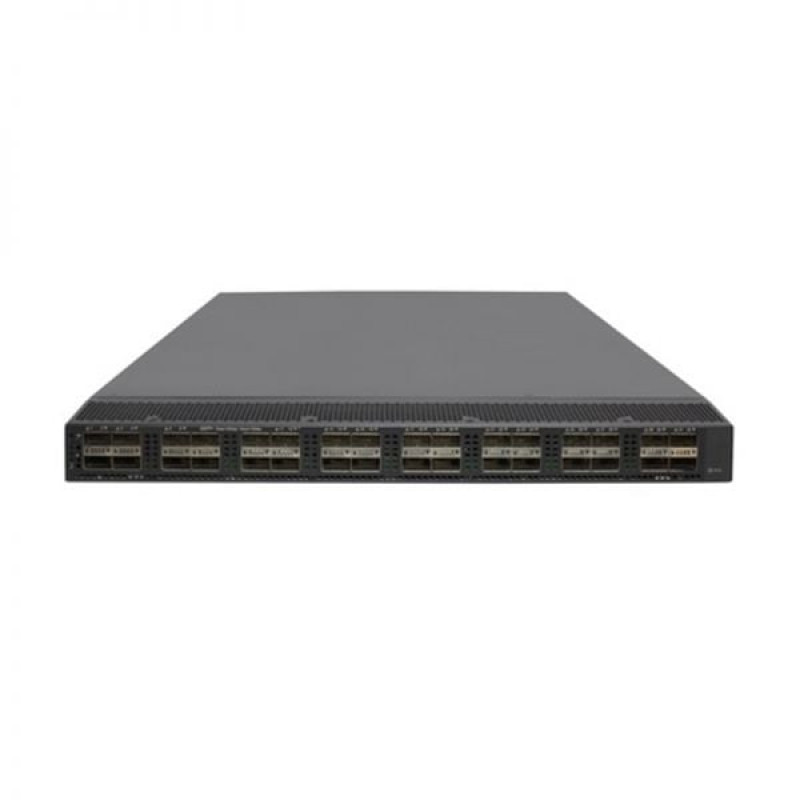

HPE FlexFabric 5940 32QSFP+ Switch
Product Number
JH396A
Security Features
Access control lists, IEEE 802.1X, RADIUS, TACACS+, Secure Shell (SSH), Secure Sockets Layer (SSL)
Switching Capacity
3.2 Tbps
Throughput
up to 2.56 Tbps
Virtualization Support
HPE IRF Technology (up to 9 switches), VXLAN, MPLS
Warranty
Limited Lifetime Warranty
