Brand
HPE
Certifications
UL 60950-1, EN 60825-1, FCC Part 15, Class A
Dimensions (W x D x H)
17.32 x 26.02 x 1.72 in (43.99 x 66.06 x 4.37 cm)
Flash Memory
1 GB
Form Factor
1U Height
Humidity Range Operating
10% to 90%, non-condensing
Input Voltage
100-240VAC
Latency
1 °s
MAC Address Table Size
288K entries
Management Features
IMC - Intelligent Management Center, SNMP, RMON, sFlow, CLI
Memory
4 GB
Operating Temperature
32°F to 113°F (0°C to 45°C)
Ports
48 x 1/10GBASE-T and 6 x 40GbE QSFP+ or 4 x 100GbE QSFP28
Power Consumption
Max. 450W
Power Supply
1+1 redundant hot-pluggable power supplies
Product Model
JH394A
Product Name

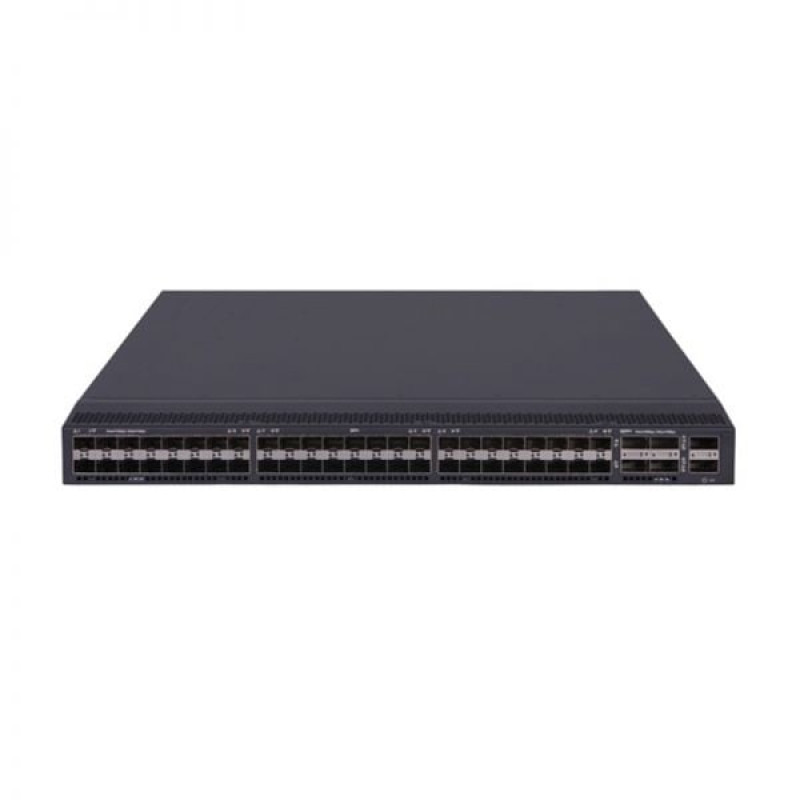

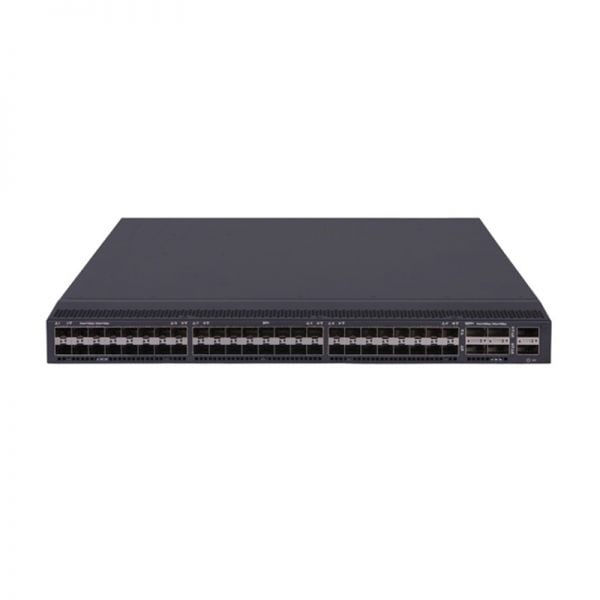

HPE FlexFabric 5940 48XGT 6QSFP+ Switch
Quality of Service (QoS)
Advanced QoS features
Routing/Switching Capacity
Layer 2 and Layer 3
Security Features
Access control lists (ACL), IEEE 802.1X, and more.
Switching Capacity
Up to 2.56 Tbps
Throughput
Up to 1440 Mpps
Virtualization
Supports VXLAN and NVGRE
