Brand
HPE
Certifications
UL 60950-1, EN 60825-1 Safety of Laser Products-Part 1, EN 60950-1 / IEC 60950-1
Device Type
Switch - 4 slots - Managed - Stackable
Dimensions (WxDxH)
17.32 x 18.98 x 1.72 in (44 x 48.2 x 4.36 cm)
Flash Memory
1 GB
Form Factor
Rack-mountable 1U
Latency
Low latency for 10GbE and 40GbE
MAC Address Size
288,000 MAC addresses
Management
IMC - Intelligent Management Center, CLI, SNMP, RMON, sFlow, and Web UI
Memory
4 GB control plane memory, 2 GB data plane memory
Model
JQ076A
Operating System
Comware v7
Performance
Up to 6 Tbps system switching capacity
Ports
Provides 48x 1/10GbE SFP+ and 6x 40GbE QSFP+ ports or 48x 10GbE and 4x 100GbE using QSFP28 ports (module dependent)
Power Supply
Dual power supply units (1+1 redundancy)
Product Name

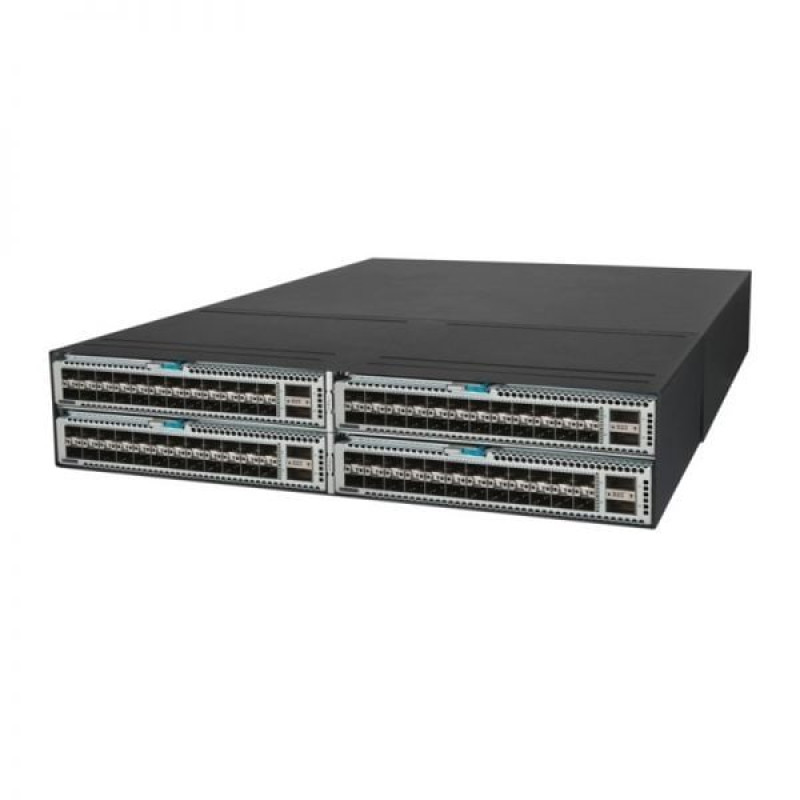

HPE FlexFabric 5945 4-slot Switch
Routing/Switching Capacity
Up to 2,000 Gbps (2 Tbps)
Security Features
Access control lists (ACLs), Source-port filtering, RADIUS/TACACS+, SSL for GUI management
Stackable
Yes
Virtualization
Support for HPE's Intelligent Resilient Framework (IRF) technology
Warranty
Limited Lifetime Warranty
