Brand
HPE
Compliance
Emissions: Class A; Safety: UL Listed
Flash Memory
1 GB
Form Factor
1U height, Rack mountable
Forwarding Rate
Up to 2504 Mpps
Latency
450ns
Layer Supported
Layer 2/3
MAC Address Table Size
288K
Management
Web-based management, SNMP, RMON
Memory
4 GB
Model Number
JQ074A
Operating Temperature
0 to 45°C (32 to 113°F)
Port Speed
SFP28: 1/10/25GbE, QSFP28: 40/100GbE
Ports
48 SFP28 ports and 8 QSFP28 ports
Power Consumption
Max. 450W
Power Supply
Dual hot-swappable power supplies
Product Name

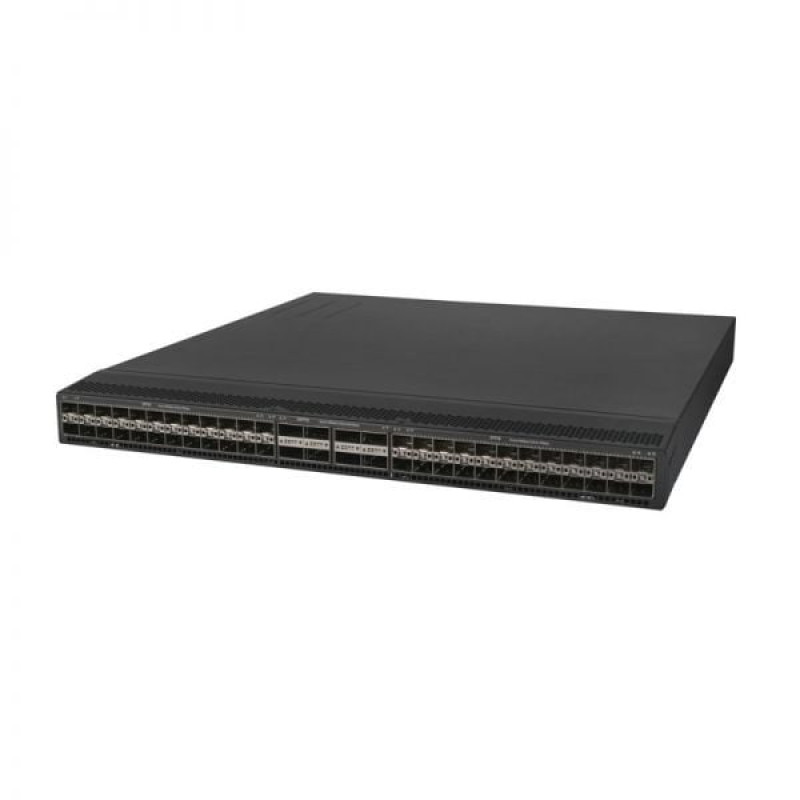

HPE FlexFabric 5945 48SFP28 8QSFP28 Switch
Relative Humidity
5% to 95%, non-condensing
Routing Protocols
BGP, OSPF, RIP
Security Features
Access Control Lists (ACLs), IEEE 802.1X, Secure Shell (SSH), SNMPv3
Storage Temperature
-40 to 70°C (-40 to 158°F)
Switching Capacity
Up to 3.6 Tbps
Warranty
Limited Lifetime Warranty
