Brand
HPE
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1ab (LLDP)
Cooling System
Integrated fans
Device Type
Switch - 4 slots
Dimensions (W x D x H)
17.32 x 16.54 x 1.73 in
Enclosure Type
Rack-mountable 1U
Expansion / Connectivity
1 (total) / 1 (free) x expansion slot
Features
Layer 3 switching, Layer 2 switching, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, Traffic Control, Quality of Service (QoS)
Flash Memory
1 GB
Jumbo Frame Support
Yes, up to 9216 bytes
MAC Address Table Size
288K entries
Management
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Model
JH404A
Network / Transport Protocol
TCP/IP, UDP/IP, ICMP/IP
Performance
Throughput: up to 1440 MppsSwitching capacity: up to 1920 Gbps
Ports
24 x 1/10GbE SFP+ and 2 x 40GbE QSFP+
Power Redundancy
Yes
Power Supply
2 (max) / 850W (each)
Product Name

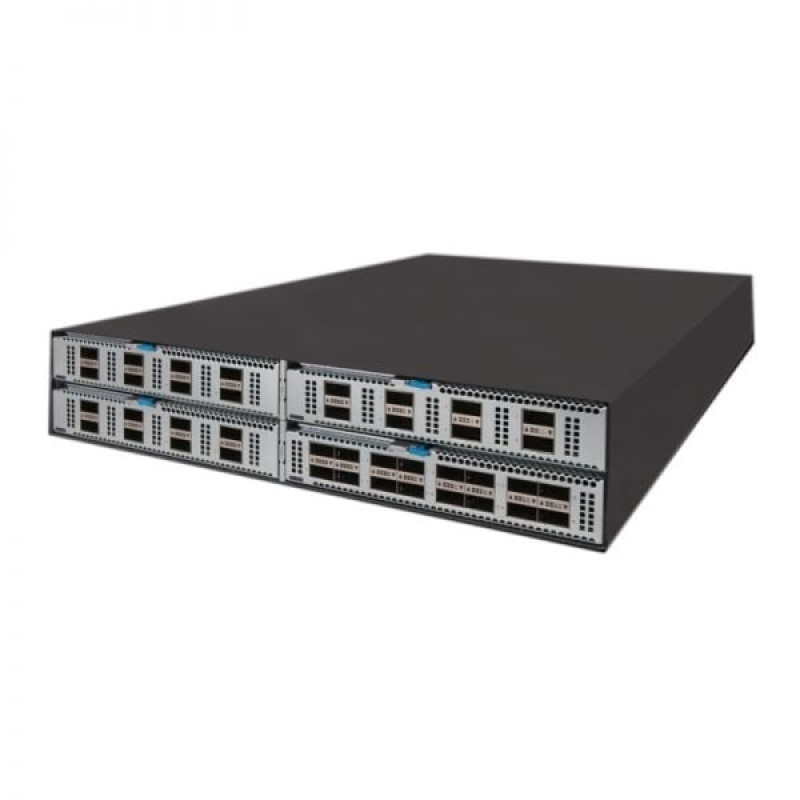

HPE FlexFabric 5950 4-slot Switch
RAM
2 GB
Routing Protocol
Static IPv4/IPv6 routing, RIP, OSPF, BGP, IS-IS
