Brand
HPE
Compatibility
OpenFlow
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p
Device Type
Switch - 48 ports - Managed
Dimensions (WxDxH)
17.32 in x 26.02 in x 1.72 in
Enclosure Type
Rack-mountable 1U
Features
VLAN support, Syslog support, Port mirroring, IPv6 support, High Availability, DDOS attack prevention
Jumbo Frame Support
Yes, up to 9216 bytes
Latency
1 °s
MAC Address Table Size
288K entries
Management
Web-based management, SNMP, RMON, CLI
Model Number
JH402A
Operating System Support
HPE Comware Software, Version 7
Performance
2 Tbps switching capacity
Ports
48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
Power over Ethernet (PoE)
Not Available
Power Supply
1 (installed) / 2 (max) - hot-plug / redundant - plug-in module
Product Name

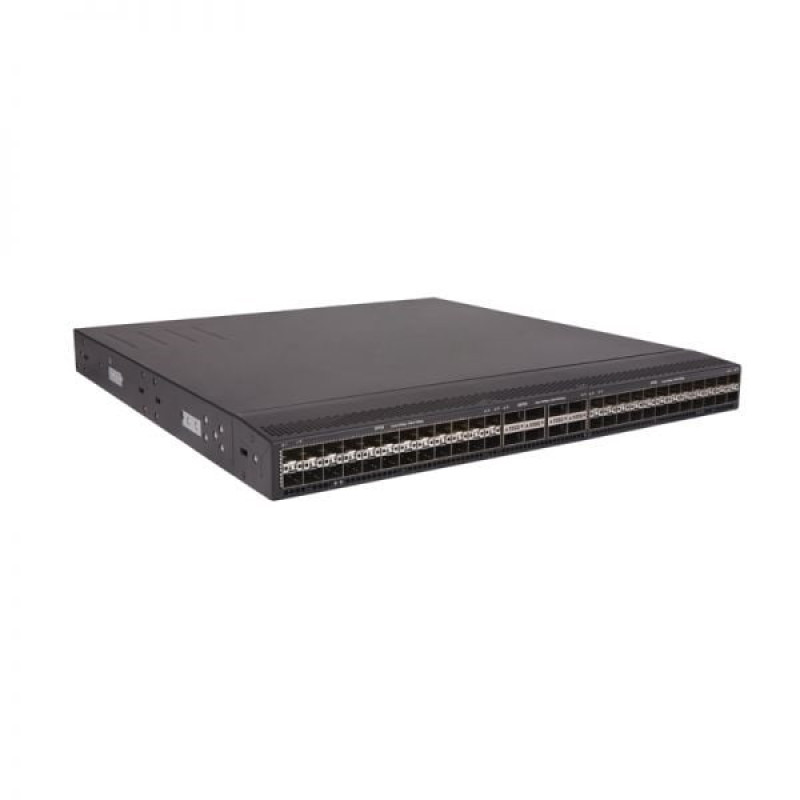

HPE FlexFabric 5950 48SFP28 8QSFP28 Switch
Routing Protocol
Static IPv4/IPv6 routing, RIP, OSPF, BGP, IS-IS, MPLS
Switching Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Throughput
1.5 Bpps
