Dimensions (W x D x H)
17.32 x 26.10 x 1.72 in (44 x 66.3 x 4.36 cm)
Energy Efficiency
Energy Efficient Ethernet (EEE)
Form Factor
1U height
Input Voltage
100-240 VAC, rated
Latency
1us
MAC Address Size
288,000 entries
Management Features
IMC - Intelligent Management Center, command-line interface, Web browser, SNMP Manager
Memory and Processor
Dual Core @ 1.5 GHz, 2 GB flash, 4 GB DDR3 SDRAM
Operating Humidity Range
10% to 90%, non-condensing
Operating Temperature Range
32°F to 113°F (0°C to 45°C)
Ports
32 QSFP+ 40GbE ports
Power Consumption
Maximum: 460W
Product Name

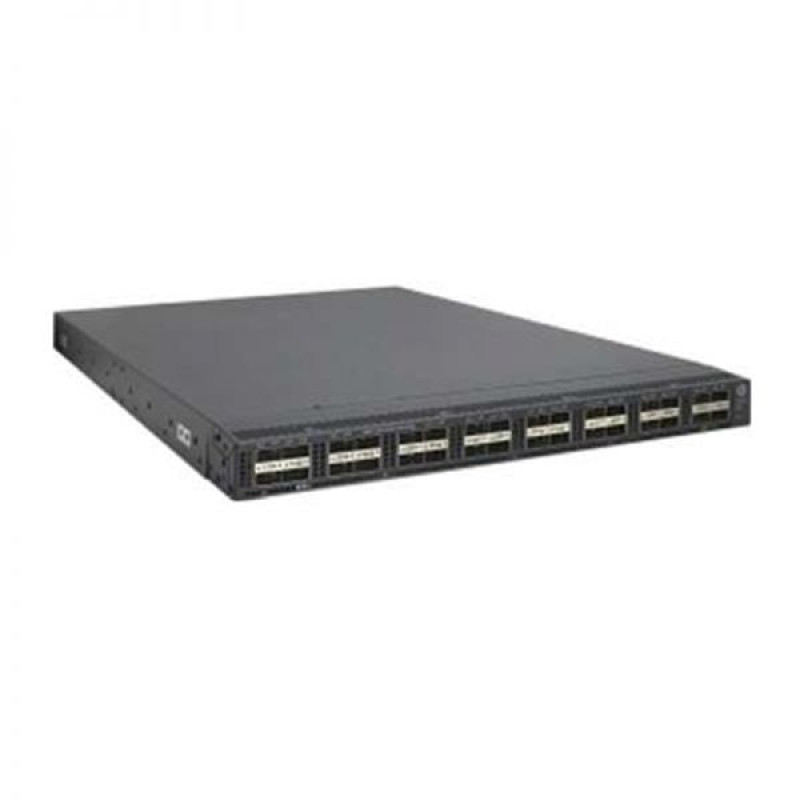

HPE FlexFabric 5930-32QSFP+ Switch
Product Number
JG726A
Routing Protocol
Static IP routing, RIP, OSPF, BGP
Security Features
ACLs, RADIUS, TACACS+, Secure Shell (SSH), IEEE 802.1X
Software Included
Comware 7
Switching Capacity
2.56 Tbps
Throughput
up to 2.56 Tbps
Virtualization
HPE Intelligent Resilient Fabric (IRF) technology
Warranty
Limited Lifetime Warranty
