JG510A

JG510A

JG510A

Нет отзывов

HPE

Бренд

Код товара: JG510A - HPE FlexFabric 5900 Switches

0 ₽

В наличии много 1000 шт

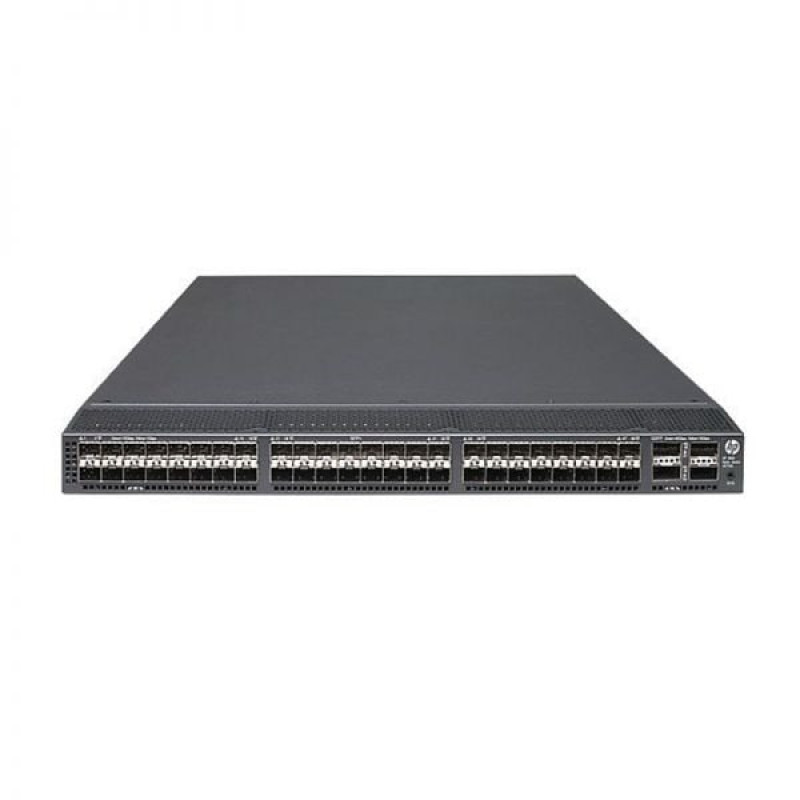

Коммутатор HPE 5900AF-48G-4XG-2QSFP+

Характеристики

Brand HPE

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)

Device Type Switch - 48 ports - L3 - Managed

Dimensions (WxDxH) 17.32 in x 18.98 in x 1.72 in

Enclosure Type Rack-mountable 1U

Expansion Slots 2 (total) / 2 (free) x expansion slot

Features VLAN support, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

Flash Memory 512 MB

Installed Size 1 GB

Interfaces 48 x 1000Base-T RJ-45, 4 x SFP+, 2 x QSFP+

MAC Address Table Size 128K entries

Management IMC - Intelligent Management Center, CLI, Web browser, SNMP, RMON

Model Number JG510A

Operating Humidity Range 10% to 90% (non-condensing)

Operating Temperature Range 32°F to 113°F

Performance Throughput Up to 1.44 Tbps

Ports 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 40 Gigabit QSFP+

Power Device Internal power supply - hot-plug

Power Redundancy Optional

Product Name HPE 5900AF-48G-4XG-2QSFP+ Switch

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2

Routing Protocol Static IP routing, RIP-1, RIP-2, BGP-4, OSPF, IS-IS, BGP, RIPng, OSPFv3, IS-ISv6

Switching Capacity 960 Gbps
