Brand
HPE
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.1x, IEEE 802.3x
Device Type
Switch - 48 ports - Managed
Dimensions (WxDxH)
44 cm x 26 cm x 4.4 cm
Enclosure Type
Rack-mountable 1U
Features
Flow control, VLAN support, Auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, High Availability, sFlow, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support
Jumbo Frame Support
Yes
MAC Address Table Size
32K entries
Management
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Operating System Support
HPE Comware Software, Version 7.1.045, Release 2506P01
Part Number
JG225B
Performance
Routing/switching capacity : 176 Gbps
Ports
48 x 10/100/1000 + 4 x Gigabit SFP
Power AC 120/230 V (50/60 Hz)
Yes
Power Device
Power supply - internal
Product Name

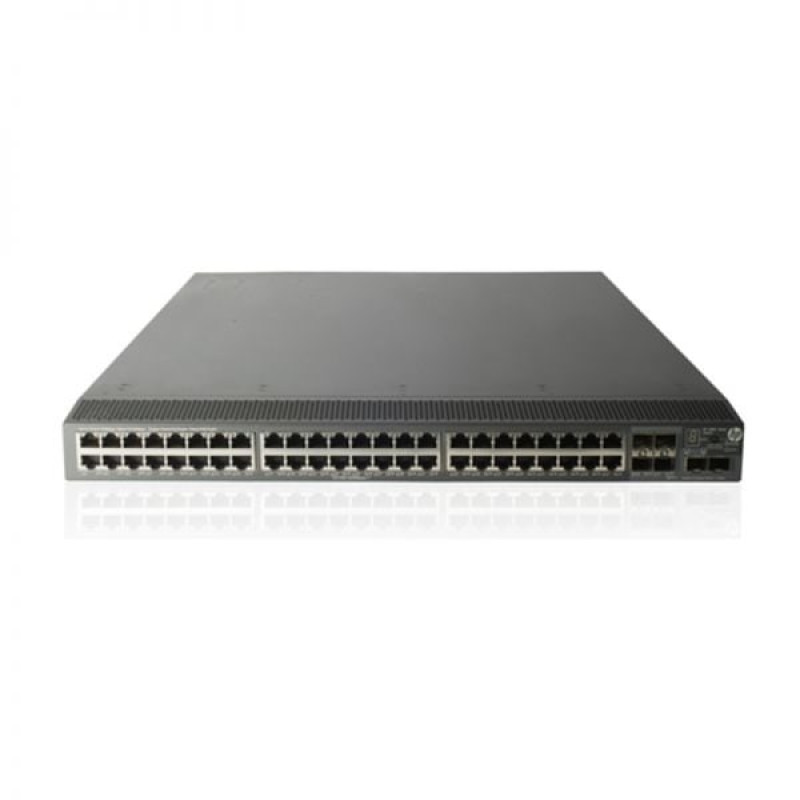

HPE FlexFabric 5800AF 48G Switch
Routing Protocol
Static IPv4 routing, Static IPv6 routing
Throughput
Up to 131 Mpps
Warranty
Limited lifetime warranty
