Brand
HPE
Compliance Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1x, IEEE 802.3ak
Device Type
Switch - 48 ports - L3 - Managed
Dimensions (WxDxH)
17.32 x 16.54 x 1.72 in
Enclosure Type
Rack-mountable 1U
Features
Flow control, layer 3 switching, DHCP support, power over Ethernet (PoE), ARP support, VLAN support, Auto-Uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, manageable, MAC address filtering
Flash Memory
512 MB
Jumbo Frame Support
Yes, up to 9216 bytes
MAC Address Table Size
32K entries
Management Interface
CLI, Web-based GUI, SNMP
Performance
130.9 Mpps
Ports
48 x 10/100/1000 + 4 x Gigabit SFP
Power AC 120/230 V ( 50/60 Hz )
Yes
Power Device
Internal power supply - hot-plug
Power Redundancy
Optional
Product Name

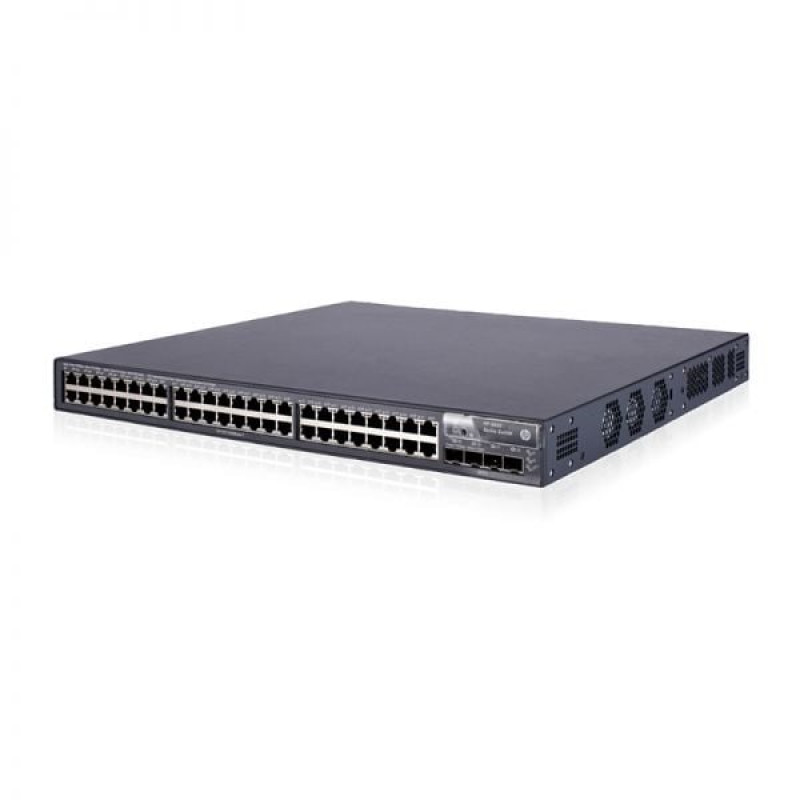

HPE FlexFabric 5800 48G 1-slot Switch
Product Number
JC105B
RAM
2 GB
Routing Protocol
Static, RIP, OSPF, BGP, VRRP, PIM-SM, PIM-DM
Routing/Switching Capacity
176 Gbps
Switching Capacity
176 Gbps
