Brand
HPE
Dimensions
44.25 x 66.04 x 4.39 cm
Expansion Slots
1 x Expansion Slot
Form Factor
Rack-mountable 1U
Layer Supported
3
Management
Web-based GUI, Command Line Interface (CLI), SNMP
Memory and Processor
1024 MB RAM, 512 MB flash; dual-core ARM Cortex-A9 @ 1016 MHz
Networking Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1X, IEEE 802.3at (PoE+)
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0°C to 45°C
PoE Budget
740 W
Ports
48 x Gigabit Ethernet Network, PoE+
Power Supply
Redundant power supply (optional)
Product Model
JC104B
Product Name

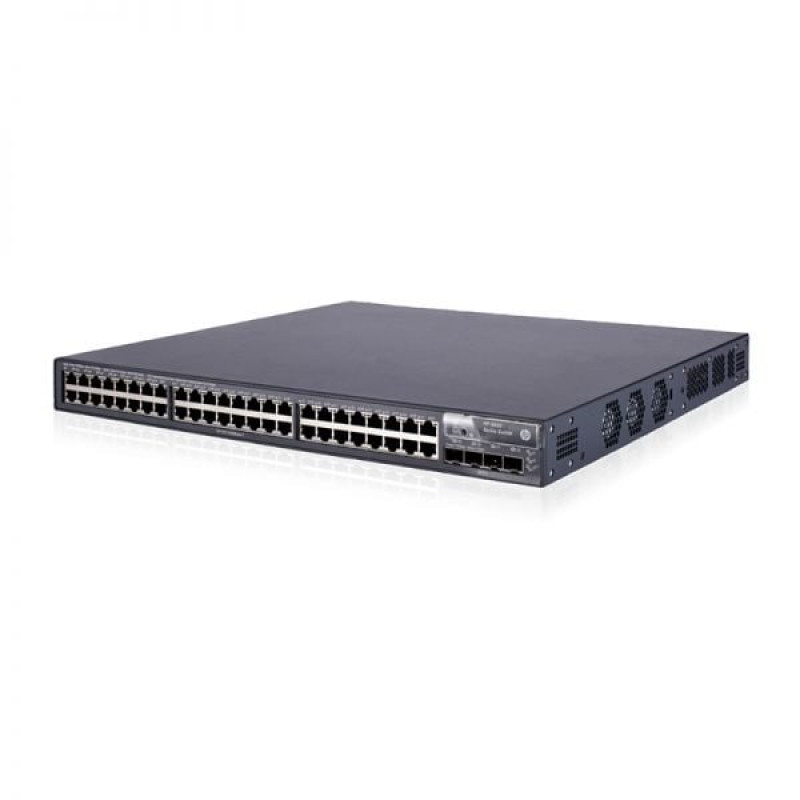

HPE FlexFabric 5800 48G PoE+ 1-slot Switch
Security Features
Access Control Lists (ACL), Secure Shell (SSH), RADIUS, TACACS+, SNMPv3
Storage Temperature
-40°C to 70°C
Switch Type
Managed
Switching Capacity
176 Gbps
Throughput
up to 130.9 Mpps
Warranty
Limited Lifetime Warranty
