Brand
HPE
Expansion Slots
4 x Fixed Gigabit Ethernet SFP+ ports
Form Factor
1U height
Layer Supported
Layer 3
MAC Address Table Size
32,000 entries
Managed
Yes
Management
Web-based management, CLI, SNMP, RMON
Memory and Processor
512 MB flash; Packet buffer size: 2 MB, 512 MB SDRAM
Networking Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Operating Humidity
10 to 90% (non-condensing)
Operating Temperature
0 to 45°C (32 to 113°F)
Ports
24 x RJ-45 autosensing 10/100/1000 ports
Power Consumption
Maximum of 230W
Product Model
JC100B
Product Name

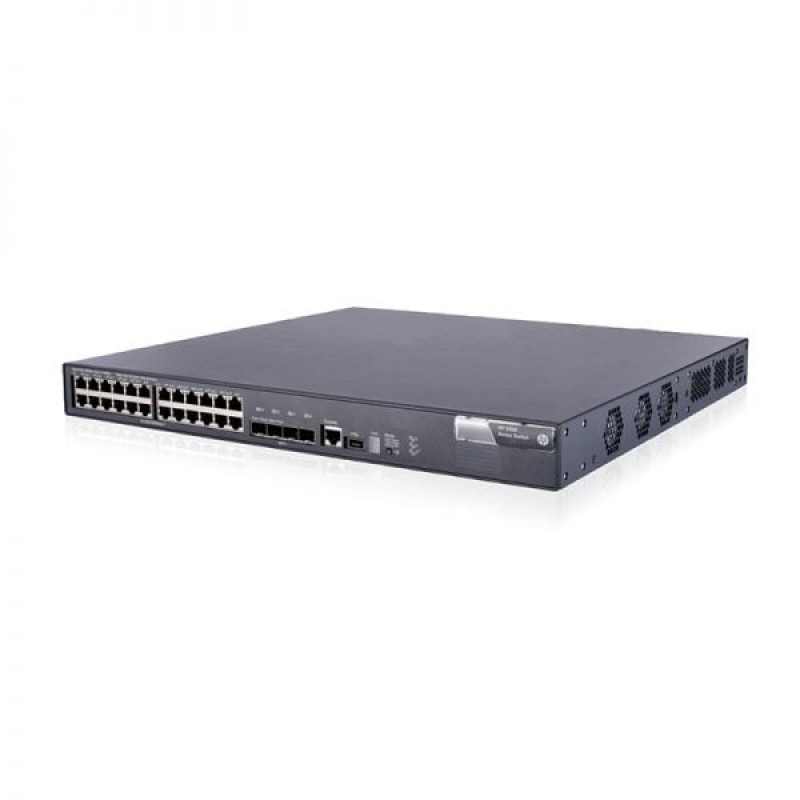

HPE FlexFabric 5800 24G Switch
Quality of Service (QoS)
Advanced QoS features
Security Features
Robust security features including ACLs, authentication, and more
Switch Type
Fixed Port
Switching Capacity
176 Gbps
Throughput
up to 48 Gbps
Warranty
Limited Lifetime Warranty
