Brand
HPE
Compliance
EN55022, EN55024, FCC Part 15 Class A, RoHS
Device Type
Switch - 24 ports - Managed
Dimensions (W x D x H)
44.2 x 66 x 4.3 cm
Fan
Three hot-swappable fans
Form Factor
Rack-mountable 1U
Jumbo Frame Support
Yes
Latency
°1.5°s (1/10GbE)
MAC Address Table Size
288K entries
Management
CLI, SNMP, RMON, sFlow, Web GUI
Model
JL587A
Operating Temperature Range
0°C to 45°C
Packet Buffer
9 MB
Performance
Up to 1.44 Tbps switching capacity
Ports
24 x 1/10GbE SFP+ and 6 x 40GbE QSFP+ or 2 x 100GbE QSFP28
Power Consumption
Maximum: 325W
Power Supply
Dual redundant power supplies (optional)
Product Name

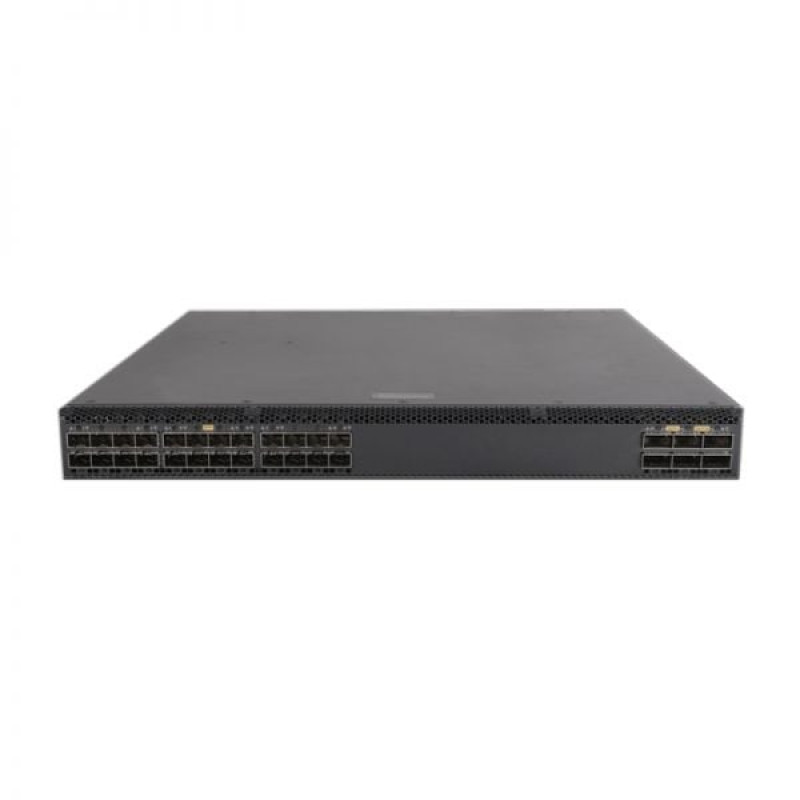

HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch
QoS (Quality of Service)
Prioritization, Traffic Shaping, Rate Limiting
Routing/Switching Capacity
Up to 1.44 Tbps
Stackable
Yes
Throughput
1071 Mpps
VLAN Support
Yes
