Brand
HPE
Device Type
Switch - 54 ports - Managed
Environmental Parameters
Operating temperature: 0 to 45 °C, Storage temperature: -40 to 70 °C
Form Factor
Rack-mountable 1U
Jumbo Frame Support
Yes
Layer Supported
Layer 2 and Layer 3
MAC Address Table Size
176K entries
Management
Web-based management, SNMP, RMON, CLI
Memory
2 GB SDRAM, 1 GB Flash
Networking Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP)
Ports
48 x 10G SFP+ / 6 x 40G QSFP+ or 2 x 100G QSFP28
Power over Ethernet (PoE)
Not supported
Power Supply
2 (optional) redundant power supplies
Product Model
JL585A
Product Name

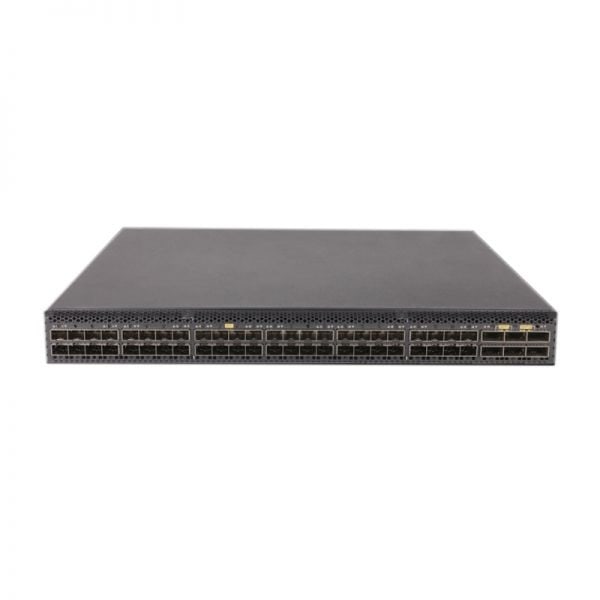

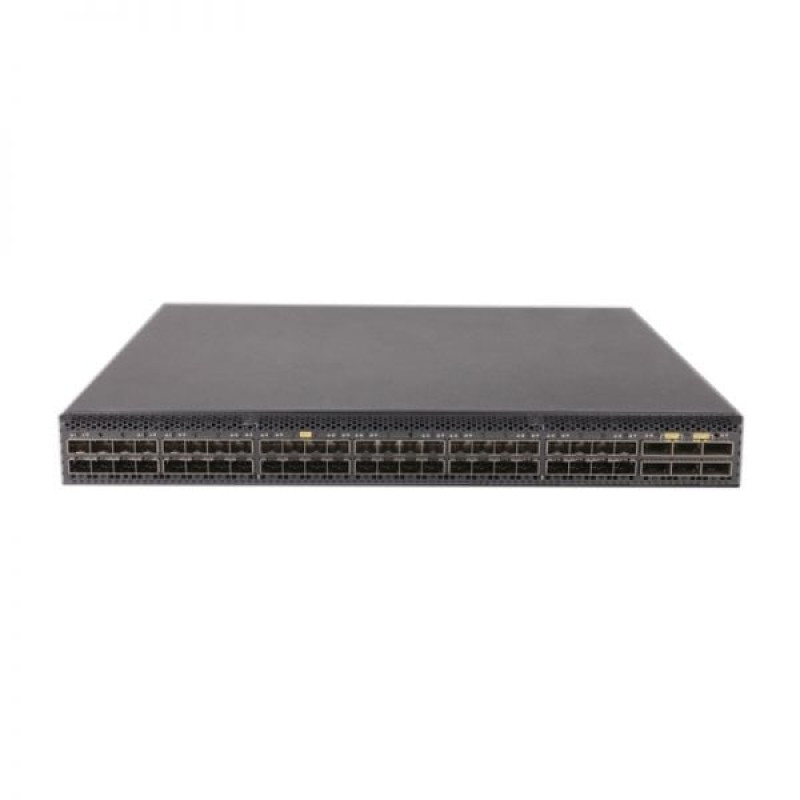

HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch
Quality of Service (QoS)
Advanced QoS features
Security Features
ACLs, RADIUS, Secure Shell (SSH), SNMPv3
Stackable
Yes
Switching Capacity
1920 Gbps
Throughput
Up to 1.44 Tbps
VLAN Support
Yes
Warranty
Limited Lifetime Warranty
