Compatibility
Compatible with HP FlexNetwork architecture
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device Type
Switch - 32 ports - Managed - Stackable
Dimensions (WxDxH)
17.32 x 18.15 x 1.72 in
Energy Efficient
Energy Efficient Ethernet (EEE)
Environmentally Friendly
Yes
Features
Flow control, Layer 2 switching, VLAN support, IPv6 support, High Availability, Mirroring, Quality of Service (QoS)
Form Factor
Rack-mountable 1U
Jumbo Frame Support
Yes
MAC Address Table Size
288,000 entries
Management
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Performance
Routing/switching capacity: 1.28 TbpsThroughput: up to 952.3 Mpps
Ports
40 x 10 Gigabit Ethernet / 2 x 40 Gigabit QSFP+
Power Redundancy
Optional
Power Supply
2 (installed) / 2 (max)
Product Brand
HPE
Product Model
JG896A
Product Name

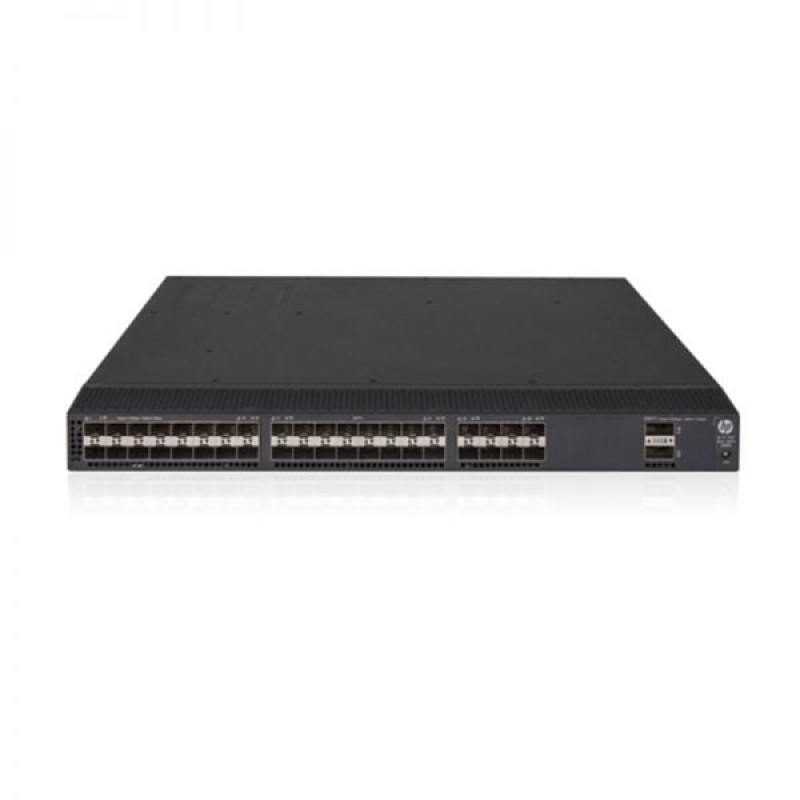

HPE FlexFabric 5700 40XG 2QSFP+ Switch
Quality of Service (QoS)
Advanced QoS features
Switching Fabric
Flexible and high-performance
Virtualization Support
HPE IRF Technology
Warranty
Limited Lifetime Warranty
