Base-T Ethernet Ports
48
Brand
H3C
Chipset
High-performance hardware architecture
Compliance Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae
Dimensions (W x D x H)
440 mm x 220 mm x 43.6 mm
Energy Efficient
Yes (EEE - Energy Efficient Ethernet)
Form Factor
1U Rack Mountable
Layer Supported
Layer 2 and Layer 3
MAC Address Table
16K
Management
SNMP, RMON, Web-Based Management, CLI
Memory
1 GB RAM, 256 MB Flash Memory
Operating Temperature Range
0°C to 45°C
Packet Forwarding Rate
130 Mpps
PoE (Power over Ethernet)
No
Port Quantity
52 Ports total (48-port 10/100/1000Base-T, 4-port SFP+)
Power Supply
AC 110/220V (50/60Hz)
Product Name

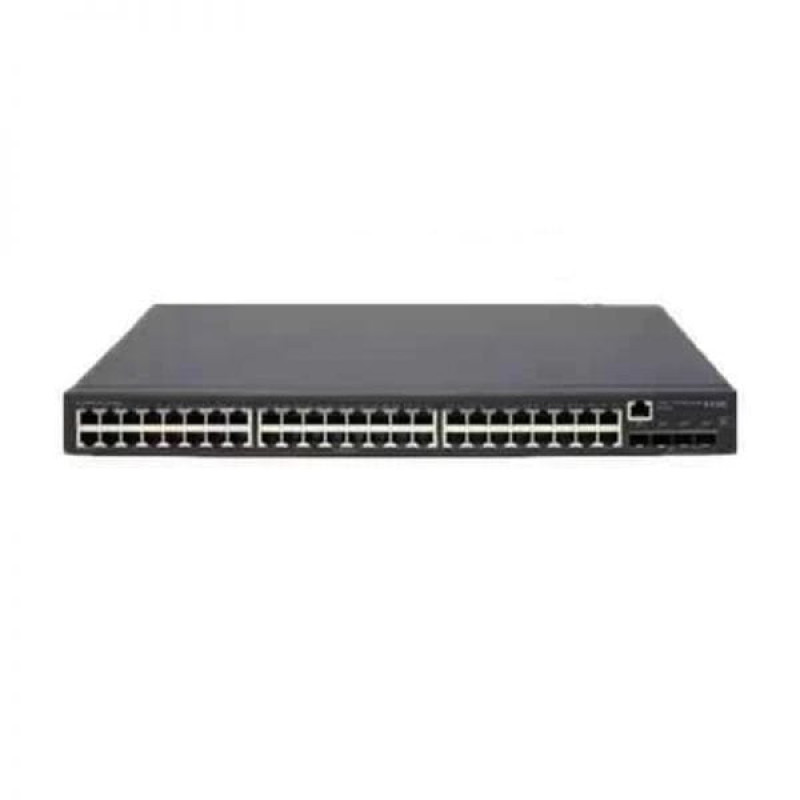

H3C S5130S-52S-LI
Quality of Service (QoS)
Advanced QoS features
Security Features
Access control lists (ACL), IEEE 802.1X, Port Security, IP Source Guard, ARP Inspection
SFP+ Ports
4
Stacking Capability
Yes
Switching Capacity
Up to 176 Gbps
VLAN Support
Yes
