Brand
H3C
Compliance
FCC, CE, RoHS
Dimensions
440 x 220 x 44 mm (WxDxH)
Environment
Operating Temperature: 0°C to 50°C, Storage Temperature: -40°C to 70°C
Forwarding Rate
95 Mpps
Layer 3 Features
Static routing, IPv4/IPv6
MAC Address Table
16K
Management
Web-based, CLI, SNMP

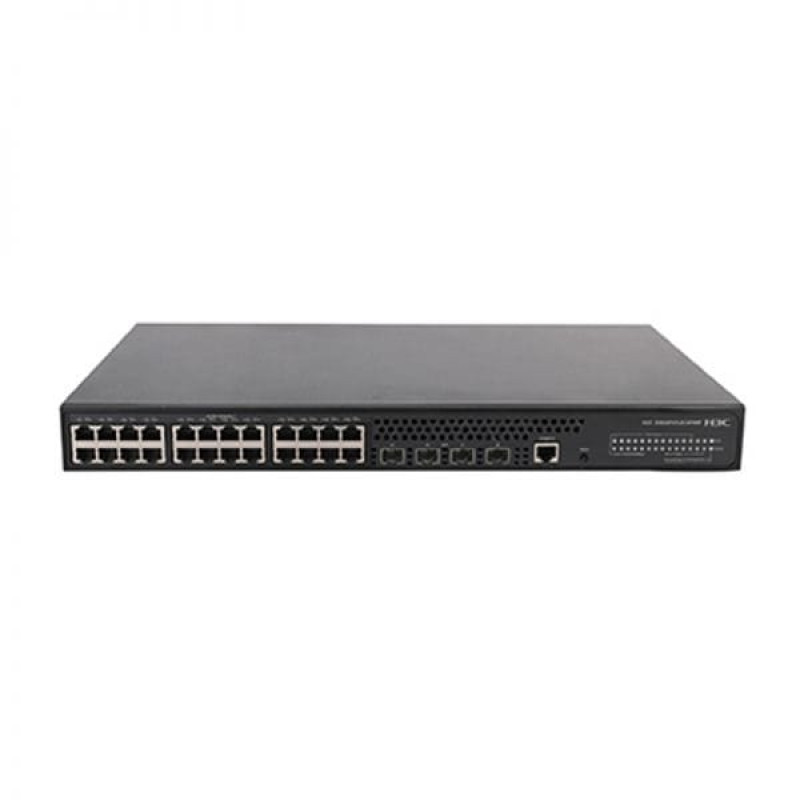

Model
S5024PV5-EI
MTBF (Mean Time Between Failures)
100,000 hours
Network Protocols
IPv4, IPv6, SNMP, DHCP
Packet Buffer
1.5 MB
Ports
24 Gigabit Ethernet ports + 4 Gigabit optical ports
Power Consumption
Max 30W
Power Supply
AC 100-240V, 50/60Hz
Product Type
Enterprise-class 24-port Gigabit switch
Quality of Service (QoS)
Supports 802.1p/DSCP QoS
Security Features
Access Control Lists (ACL), 802.1X, Port Security, IP/MAC/Port Binding
Switching Capacity
Up to 128 Gbps
VLAN Support
IEEE 802.1Q VLAN tagging and port-based VLANs
