Backplane Speed
5.76 Tbps
Brand
HPE
Data Rate
Non-blocking, up to 2.3 Tbps per slot
Dimensions (H x W x D)
36.2 x 44 x 66 cm
Fan Tray
Hot-swappable fan tray
Form Factor
Rack-mountable
Management Interface
CLI, SNMP, MIB
Operating Humidity Range
10% to 90% (non-condensing)
Operating Temperature
0° to 45°C
Power Supply
Redundant power supply
Product Name

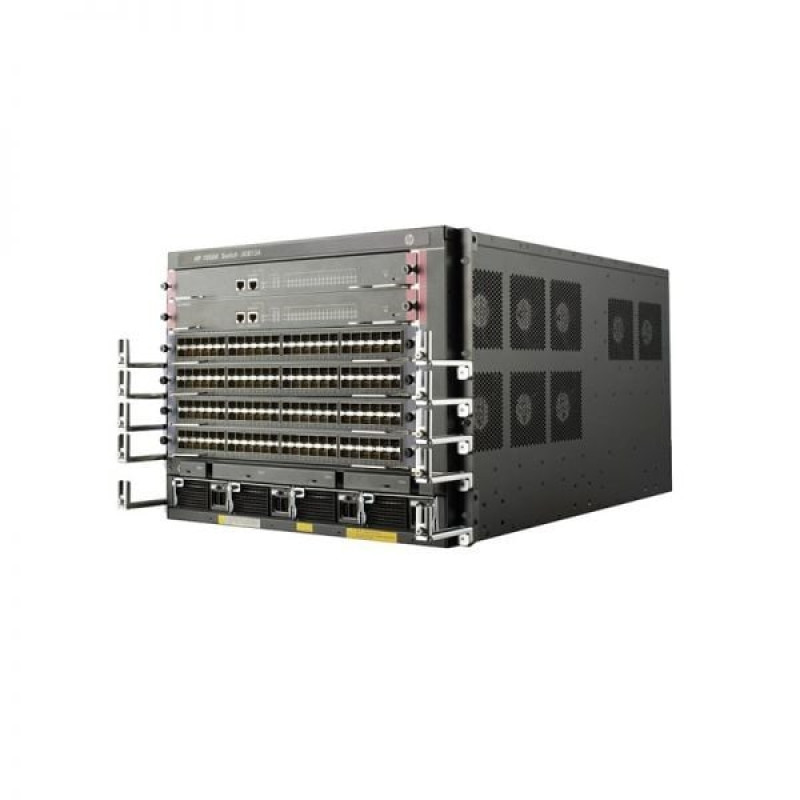

HPE 10504 Switch Chassis
Product Number
JC613A
Regulatory Compliance
IEEE Standards, Safety and Emission Standards
Slots
4 open module slots
Storage Humidity Range
5% to 95% (non-condensing)
Storage Temperature
-40° to 70°C
Supported Protocols
L3 switching, Multicast, QoS, MPLS, BGP, OSPF, IPv4/IPv6
Switch Series
10500
Type
Switch Chassis
VLAN Support
Yes
Warranty
Limited Lifetime Warranty
