Brand
FiberHome
Compliance
ETSI, CE, FCC
Cooling
Fan cooling
Cross-Connect Capacity
Up to 128G
Dimensions (HxWxD)
442mm x 220mm x 250mm
Management
Web, NMS
Max E1 Interfaces
252
Max STM-1 Interfaces
28
Max STM-16 Interfaces
7
Max STM-4 Interfaces
14
Max STM-64 Interfaces
1
Model

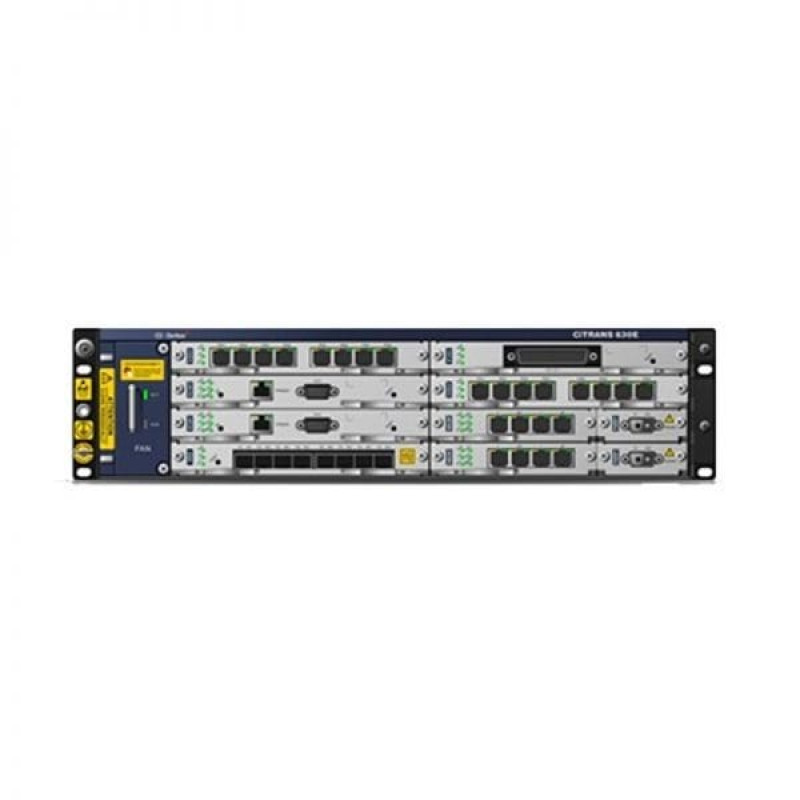

CiTRANS 630E
Mounting
19-inch rack mount
Operating Temperature
-5??C to +45??C
Power Supply
-48V DC
Protection Types
1:1 MS/LS protection, SNCP, MSP
Relative Humidity
5% to 95%, non-condensing
SDH Service Interface
E1 services, STM-N
Service Processing
TDM services
Storage Temperature
-40??C to +70??C
Synchronization Methods
Synchronous, Asynchronous
