Brand
Huawei
Dimensions (W x D x H)
390 mm x 220 mm x 44 mm
Fixed Ports
3 x WAN/LAN GE ports, 1 x USB port
Flash Memory
512MB, expandable
LAN Ports
10/100/1000 Mbps
Management
Console, AUX, Telnet, SSH, SNMP, Web
Memory
512MB, expandable up to 2GB
Model Name

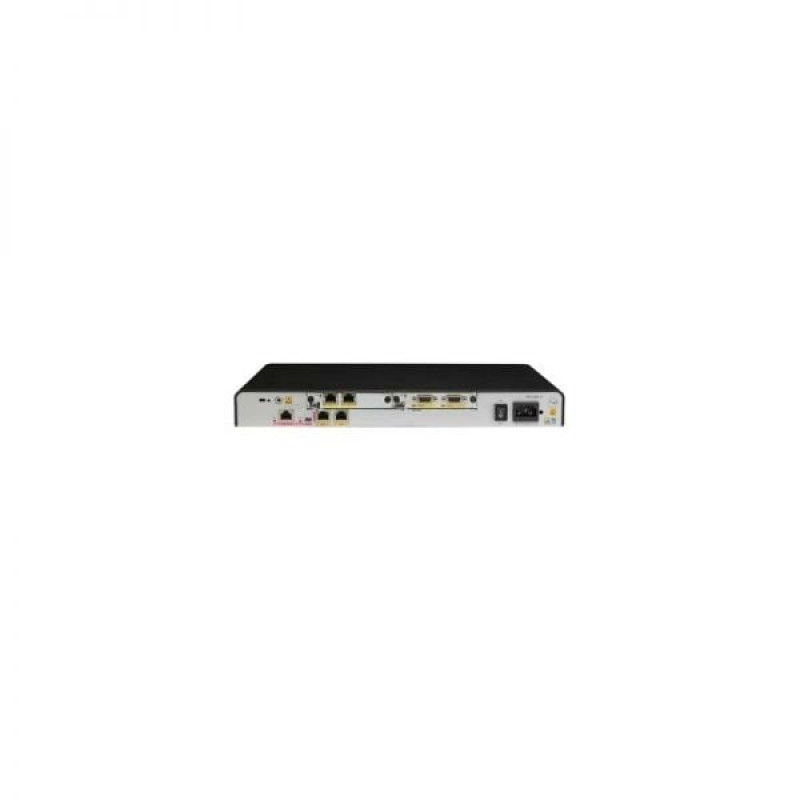

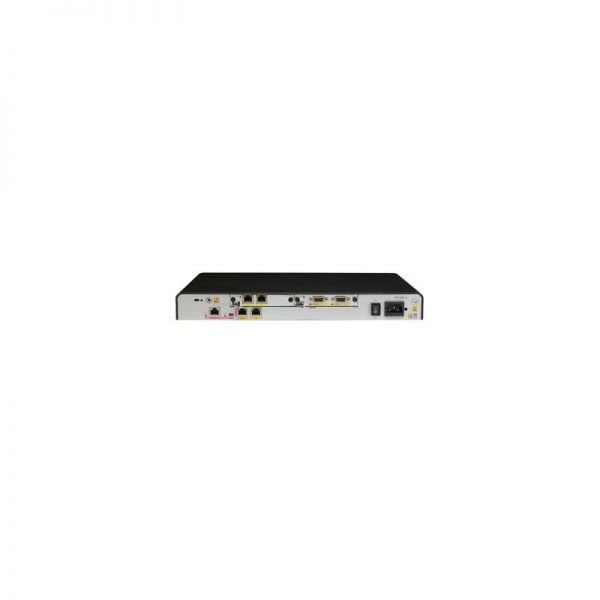

AR1220L-S
Operation Humidity
5% to 95% (non-condensing)
Operation Temperature
0°C to 50°C
Packet Forwarding Rate
Up to 350 Kpps
Power Supply
AC and DC options
Product Type
Enterprise Router
Quality of Service (QoS)
Yes
Routing Protocols Supported
Static route, RIPv1/v2, OSPF, IS-IS, BGP
Safety Certifications
CE, FCC, UL
Storage Temperature
-40°C to 70°C
VLAN Support
IEEE 802.1Q, VLAN tagging, and VLAN trunking
VPN Support
IPSec, GRE, L2TP, SSL VPN
WAN Speed
2GE
Warranty
1-Year Limited Warranty
