Brand
HPE
Compliance Standards
RoHS, WEEE
Data Transfer Rate
16 Gbps
Device Type
Switch - 96 ports - Managed
Dimensions (WxDxH)
17.32 x 24.13 x 3.47 in
Enclosure Type
Rack-mountable 2U
Expansion / Connectivity
96 x SFP+
Features
Auto-sensing per device, trunking, ISL support, manageable, full duplex capability
Fibre Channel
FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW, FC-SW-2, FC-SW-3, FC-SW-4, FC-VI
Installed Qty
2 (installed) / 2 (max)
OS Required
Microsoft Windows 2003, SunSoft Solaris 10, Red Hat Linux, SUSE Linux, Microsoft Windows 2008
Performance
1.536 Tbps switching fabric bandwidth
Ports
96 x 16Gb Fibre Channel
Power Device
Internal power supply - Hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Product Name

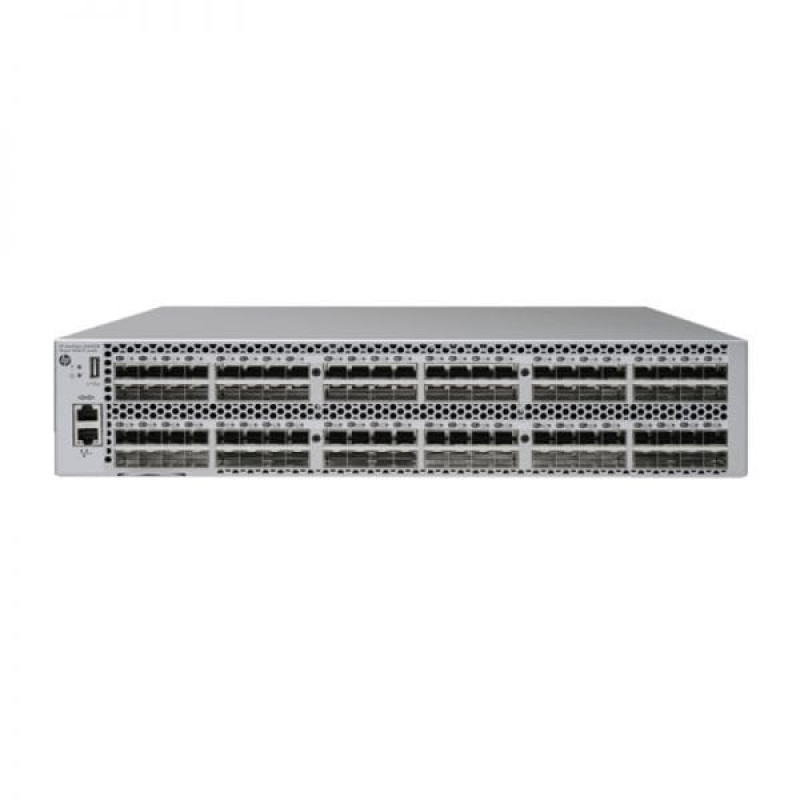

HPE StoreFabric SN6500B 16Gb 96/96 Fibre Channel Switch
Product Number
C8R43A
Rack Mounting Kit
Included
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2
Subtype
Fibre Channel
Voltage Required
AC 120/230 V (50/60 Hz)
