The FortiGate 100F series provides an application-centric, scalable, and secure SD-WAN solution with Next Generation Firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinets Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Quick Spec

Table 1 shows the quick spec.

Product Code	FG-100F
Hardware Accelerated GE RJ45 Ports	12
Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports	1 / 2 / 1
Hardware Accelerated GE SFP Slots	4
Hardware Accelerated 10 GE SFP+ FortiLink Slots (default)	2
GE RJ45 WAN Ports	2
GE RJ45or SFP Shared Ports	4
USB Port	1
Console Port	1
IPS Throughput	2.6 Gbps
NGFW Throughput	1.6 Gbps
Threat Protection Throughput	1 Gbps
Height x Width x Length (inches)	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254

Product Details

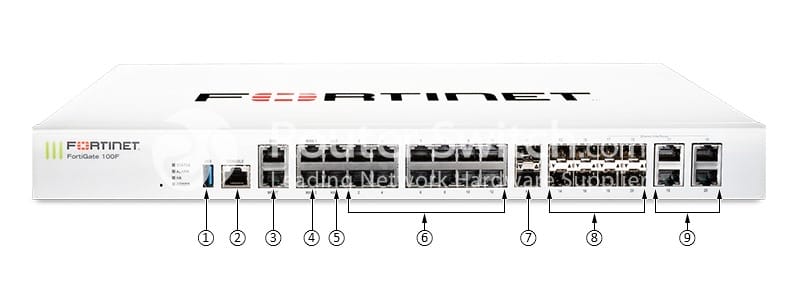

Figure 1 shows the front view of FG-100F.

Note:

1	1x USB Port
2	1x Console Port
3	2x GE RJ45 MGMT/DMZ Ports
4	2x GE RJ45 WAN Port
5	2x GE RJ45 HA Ports
6	12x GE RJ45 Ports
7	2x 10 GE SFP+ FortiLink Slots
8	4x GE SFP Slots
9	4x GE RJ45/SFP Shared Media Pairs

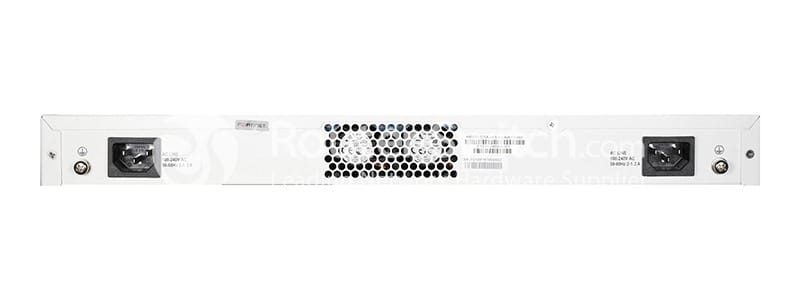

Figure 2 shows the rear view of FG-100F.

Compare to Similar Item

Table 2shows the comparison of FG-100Fand FG-101F.

Product Code	FG-100F	FG-101F
Onboard Storage	0	1x 480 GB SSD
Included Transceivers	0	0
IPS Throughput	2.6 Gbps	2.6 Gbps
NGFW Throughput	1.6 Gbps	1.6 Gbps
Threat Protection Throughput	1 Gbps	1 Gbps
Height x Width x Length (inches)	1.73 x 17 x 10	1.73 x 17 x 10
Height x Width x Length (mm)	44 x 432 x 254	44 x 432 x 254
Weight	7.25 lbs (3.29 kg)	7.56 lbs (3.43 kg)
Form Factor(supports EIA/non-EIA standards)	Rack Mount, 1 RU	Rack Mount, 1 RU
AC Power Supply	100°C240V AC, 50/60 Hz	100°C240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	35.1 W / 38.7 W	35.3 W / 39.1 W
Current (Maximum)	100V / 1A, 240V / 0.5A	100V / 1A, 240V / 0.5A
Heat Dissipation	119.77 BTU/h	121.13 BTU/h
Redundant Power Supplies	Yes	Yes

Related Products

Table 3 shows the bundle models and licenses of FG-100F.

Types	Model	Description
Basic Firewall	FG-100F	22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy. Max managed FortiAPs (Total / Tunnel) 64 / 32. Need to buy with License.
1 year bundle	FG-100F-BDL-950-12	FG-100F Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-100F & FC-10-F100F-950-02-12)
1 year License	FC-10-F100F-950-02-12	1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100F
3 year bundle	FG-100F-BDL-950-36	FG-100F Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-100F & FC-10-F100F-950-02-36)
3 year License	FC-10-F100F-950-02-36	3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100F
5 year bundle	FG-100F-BDL-950-60	FG-100F Hardware plus 5 Year 247 FortiCare and FortiGuard Unified (UTM) Protection (FG-100F & FC-10-F100F-950-02-60)*
5 year License	FC-10-F100F-950-02-60	5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-100F

Product Features:

- 22x GE RJ45 ports with various functionalities, including WAN, DMZ, Mgmt, HA, and switch ports

- 4 SFP ports for flexible connectivity options

- 2x 10 GE SFP+ FortiLinks for high-speed data transmission

- Dual power supplies for redundancy and uninterrupted operation

- Supports up to 64 managed FortiAPs for comprehensive wireless security

- Fortinet NGFW technology provides industry-leading protection against advanced threats

Key Advantages:

- Comprehensive network security to protect against threats and vulnerabilities

- Enhanced performance and scalability to handle increasing network traffic

- Simplified management and administration for better efficiency

- High availability and redundancy for uninterrupted network operation

Product Applications:

- Small to medium-sized businesses looking for robust network security

- Enterprise organizations with high network traffic and complex security requirements

- Service providers offering managed security services to their clients

Configuration and Management:

The FG-100F offers a user-friendly interface for easy configuration and management. It provides intuitive controls and features, allowing administrators to quickly set up policies, monitor traffic, and detect potential threats. With centralized management capabilities, multiple FG-100F devices can be easily managed from a single console, simplifying administrative tasks and ensuring consistent security policies across the network.

Get More Information

Do you have any question about the FG-100F

Название:	FG-7081F-CH
Модель:	Fortinet FG-7081F-CH

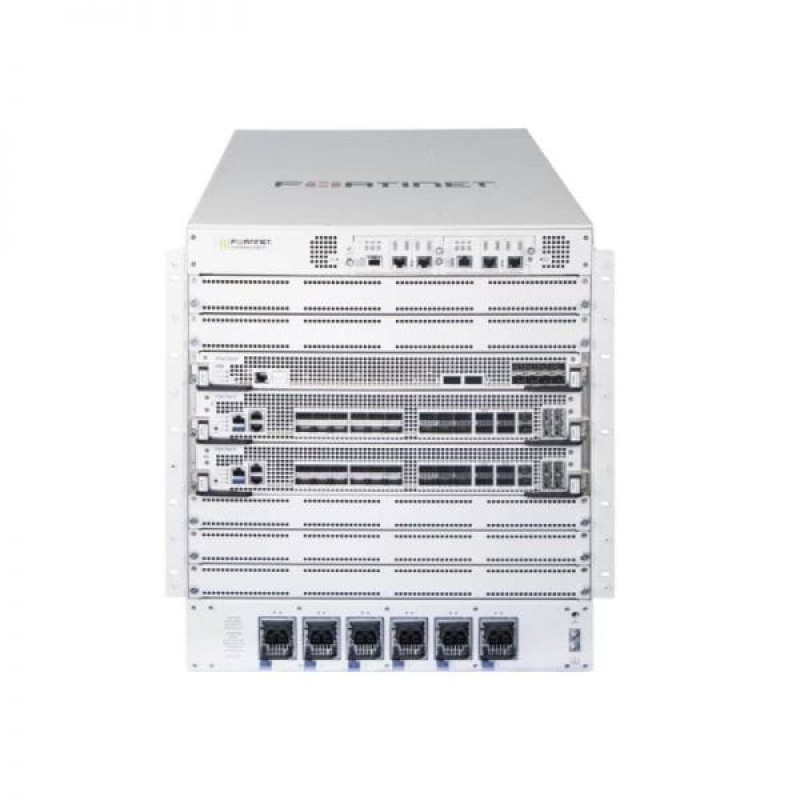

Detail:	FG-7081F chassis FG-7081F chassis with 2x system management module, 6x 2500WAC PSU and 3x FG-7081F FAN module.
	51Рейтинг:100%5/5.01 Отзыв
Список цен:	146 000,00 US$ (11% OFF)
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 129 273,00 US$RUB ₽9,539,248.03Почему мы можем предоставить эту конкурентоспособную цену? Благодаря цифровому управлению и оптовым закупкам у оригинальных производителей и авторизованных поставщиков по всему миру Router-switch.com гарантирует качество и подлинность по конкурентоспособной цене.
Купон	Up to $80 CouponsПолучить сейчас$10.00Order Over $100RS10$20.00Order Over $2000RSTW$50.00Order Over $5000RSFI$80.00Order Over $8000RSEI
Наличие:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Условие:	New
