Antenna Gain
16dBi
Beamwidth
23° (H), 23° (V)
Chain
Dual Chain
Dimensions
129x129x34mm
Integrated Antenna
Yes - 16dBi 5GHz dual chain
LEDs
3 (Power, LAN, 5G)
License Level
Level 3
Max Power Consumption
7W
Max Tx Power
28dBm
Memory
64MB RAM
Networking Interface
1x 10/100 Ethernet port
Operating Frequency
5GHz
Operating System
RouterOS
Operating Temperature
-40°C to 70°C
PoE In
Yes
Processor Specs
AR9344 600MHz
Product Name

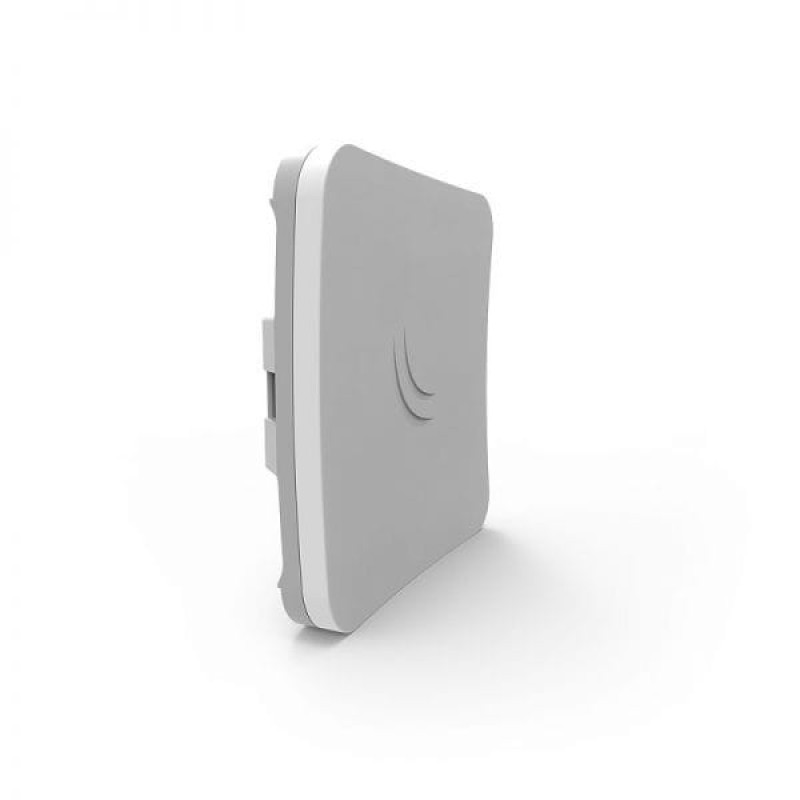

Mikrotik RBSXTsq5HPnD
Software Features
Advanced Quality of Service, Routing, Firewall, MPLS, VPN, Advanced Security
Supported Input Voltage
10V - 30V (Passive PoE)
Type
High Power small-size CPE/Backbone
Wireless Protocols
802.11a/n
