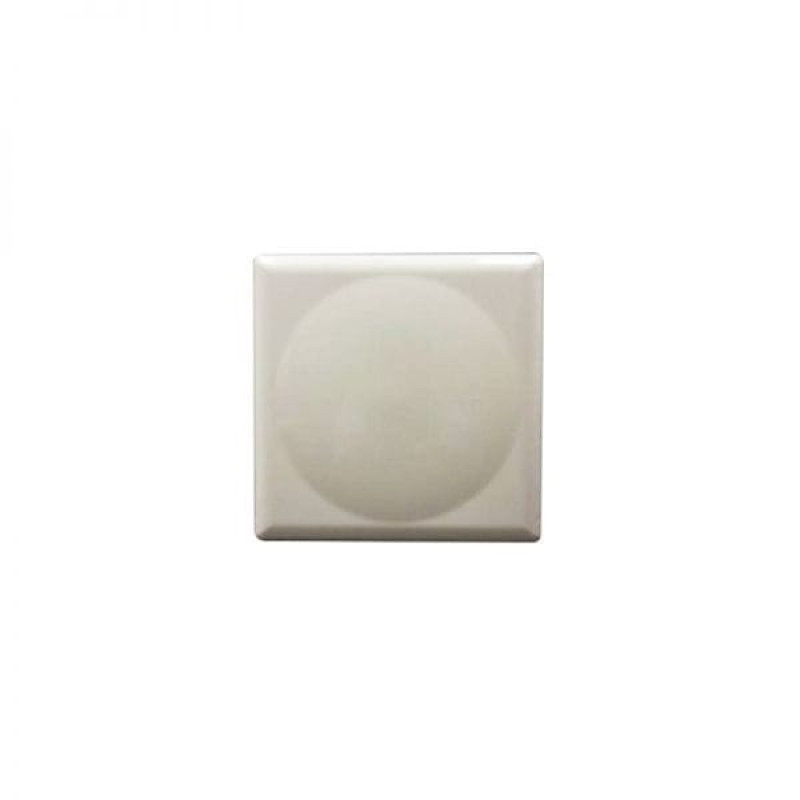

ANT-3x3-5712 4,9–5,9 ГГц, 12,0 дБи, 75x25° +/- 45° и V Pol 3 MIMO, направленная антенна с высоким коэффициентом усиления
Antenna Type
High Gain Directional Antenna
Beamwidth
75x25 degrees
Brand
Aruba
Connector Type
N-Type Female
Dimensions (HxWxD)
345 mm x 267 mm x 66 mm
Environmental Sealing
IP67
Frequency Range
4.9-5.9GHz
Front to Back Ratio
25 dB
Gain
12.0dBi
Max Wind Velocity
160 km/h
MIMO
3 MIMO
Model
JW033A
Mounting Options
Wall or Pole
Operating Temperature Range
-40??C to +70??C
Polarization
+/? 45 degrees and V Pol
Power Rating
50W
Product Name
ANT-3x3-5712
Radome Material
UV-Stable Plastic
Reflector Material
Aluminum
Survival Wind Velocity
200 km/h
Warranty
1 Year
